Buy Cisco ASR 901 Series Aggregation Services Router Chassis

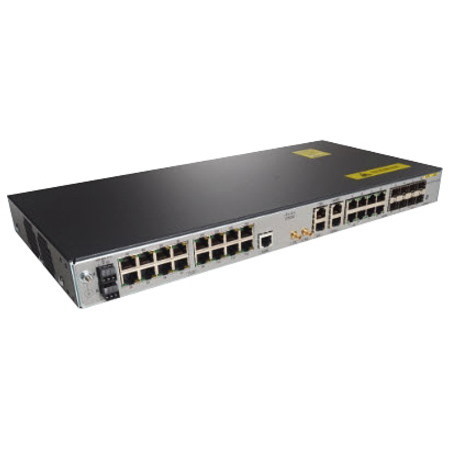

Cisco ASR 901 Series Aggregation Services Router Chassis

Part: 1116703
Model: A901-4C-F-D

$2,336.00

FREE DELIVERY

Availability

Out of Stock

General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- ASR 901
- Product Type
- Router

The Cisco® ASR 901 Series Aggregation Services Routers are environmentally hardened, high-speed, low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers, operators can reduce backhaul operating costs, simplify and converge their RAN and Ethernet access networks, and enhance their profit opportunities with mobile and premium Ethernet services.

RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and new-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable time-division multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor, multigeneration radios and transport networks.

Warranty
- Limited Warranty
- 90 Day

Interfaces/Ports
- Total Number of Ports
- 8
- Powerline
- No
- Management Port
- Yes
- Token Ring Port
- No
- Serial V.35 Interface
- No
- Number of Network (RJ-45) Ports
- 8

I/O Expansions
- Number of Total Expansion Slots
- 8
- Expansion Slot Type
- SFP (mini-GBIC)

Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T

Management & Protocols
- Security Features
- - RADIUS
  - TACACS+
  - Secure Shell v.2 (SSH2)
  - Layer 3 ACLs

Memory
- Standard Memory
- 512 MB
- Memory Technology
- DDR3 SDRAM
- Flash Memory
- 128 MB

Power Description
- PoE (RJ-45) Port
- No
- Redundant Power Supply Supported
- Yes
- Power Source
- Power Supply

Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 8.3"
- Weight (Approximate)
- 6.80 lb

Miscellaneous
- Certifications & Standards
- - ISO/IEC 9314-3
  - ANSI X3.263-1995
  IEEE Standards:
  - 802.1q
  - 802.1ad
  - 802.3ad
  - 802.1p
  - 802.1ag
  - 802.3
  - 802.3ae
  - 802.3ah
  Safety:
  - UL/CSA 60950-1
  - IEC/EN 60950-1
  - AS/NZS 60950.1
  EMC Emissions:
  - FCC 47CFR15, Class A
  - EN55022, Class A
  - CISPR 22, Class A
  - AS/NZS CISPR 22, Class A
  - ICES 003, Class A
  - VCCI, Class A
  - KN 22, Class A
  EMC Immunity:
  - EN/IEC61000-4-2
  - EN/IEC61000-4-3
  - EN/IEC61000-4-4
  - EN/IEC61000-4-5
  - EN/IEC61000-4-6
  NEBS:
  - GR-63-CORE
  - GR-1089-CORE
  ETSI/EN:
  - EN 300 386
  - EN55022
  - EN55024
  - EN61000-6-1
  Network Synchronization:
  - GR-1244-CORE
  - ITU-T G.813
  - ITU-T G.703 clause 5
  - ITU-T G.703 clause 9
  - ITU-T G.8261/Y.1361
  - ITU-T G.781
  - ITU-T G.8264
  - IEEE1588-20
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
