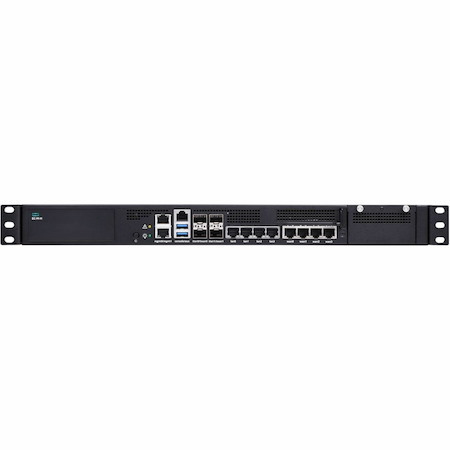

The HPE Aruba Networking EC-M-H SD-WAN Gateway is a 1 U rack-mountable hub gateway platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G, internet-based hybrid WAN transport services, and a control plane that is automated and secured by the HPE Aruba Networking WAN Orchestrator centralized management software - providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications.
Key features of EC-M-H include high-availability through power supply and storage redundancy, 8 x 1 GbE RJ45 ports along with 4 x 1/10 Gbps Short Reach (SR) or Long Reach (LR) fiber optical ports, making it an ideal platform for data center and large hub environments with typical WAN bandwidth from 50 Mbps to 5 Gbps (bidirectional).
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Line
- EdgeConnect
- Product Type
- Router
- Interfaces/Ports
- Total Number of Ports
- 8
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of WAN Ports
- 4
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- Networking Standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.1Q
- Power Description
- Redundant Power Supply Supported
- Yes
- Power Source
- Power Adapter
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Rail Mountable
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 16.5"
- Weight (Approximate)
- 18.10 lb
