- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Line
- EdgeConnect
- Product Type
- Router

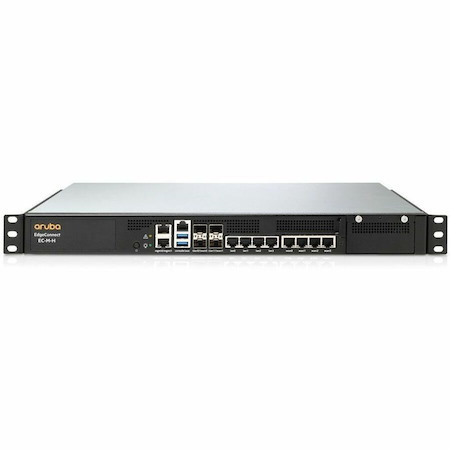

The Aruba EdgeConnect SD-WAN EC-M-H is a 1 U rack mountable hub gateway platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G and internet-based hybrid WAN transport services and a control plane that is automated and secured by the Aruba WAN Orchestrator centralized management software providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications. Key features of Aruba EdgeConnect SD-WAN EC-M-H include high-availability through power supply and storage redundancy, 8 x 1GbE RJ45 ports along with 4 x 1/10Gbps Short Reach (SR) or Long Reach (LR) fiber optical ports, making it an ideal platform for Data Center and large hub environments with typical WAN bandwidth from 50Mbps to 5 Gbps (bidirectional).
- Interfaces/Ports
- Total Number of Ports
- 8
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of WAN Ports
- 4
- I/O Expansions
- Number of Total Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 10/100/1000Base-T
- Networking Standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.1Q
- Power Description
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 153 W
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 16.5"
- Weight (Approximate)
- 18.10 lb
- Miscellaneous
- Certifications & Standards
- FCC Part 15 Class A
- EN 55024/55032/55035 Class A
- VCCI Class A
- EN 61000-3-2/3-3
- UL/CB 60950-1 / 62368-1
- EN 60950 / 62368
