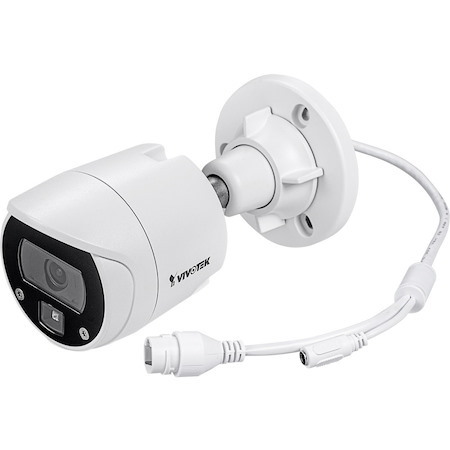

VIVOTEK IB9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. IB9369 offers fixed-focal lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility.
For harsh outdoor environment, IB9369 is encased in IP66 and IK10 housing. Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. Lastly the IB9369 uses H.265 compression technology, which helps to reduce bandwidth and storage consumption.
- General Information
- Manufacturer
- Vivotek, Inc
- Manufacturer Website Address
- http://www.vivotek.com
- Brand Name
- Vivotek
- Product Series
- C
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- 118° (Horizontal) 65° (Vertical) 140° (Diagonal)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Mount Type
- Junction Box Mount
- Conduit Mount
- Corner Mount
- Pole Mount
- Form Factor
- Bullet
- Durability
- Water Resistant
- Vandal Proof
- Dust Resistant
- Weather Proof
- Height
- 7.1"
- Diameter
- 3.6"
- Weight (Approximate)
- 1.48 lb
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- Digital Wide Dynamic Range (D-WDR)
- Motion Detection
- 3D Noise Reduction
- SD Card Local Storage
- Built-in Infrared Illuminator
- Day/Night
- Built-in Microphone
- Indoor/Outdoor
- Outdoor
- Package Contents
- IB9369-F2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Cable Gland
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- TAA Compliant
- Yes
