AI Deep-Learning IP Camera

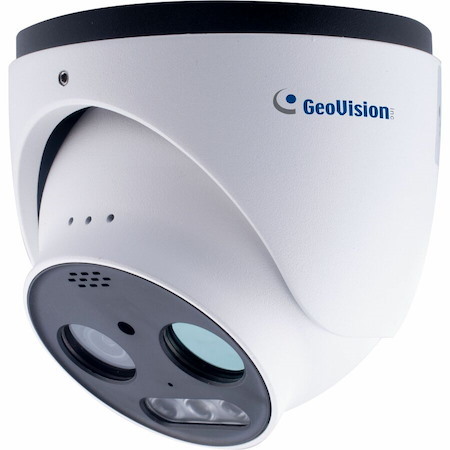

GV-TMEB5800 is an AI-capable thermal camera that combines dual thermal and optical images for perimeter protection and fire prevention. The thermal camera can detect fires and measure predefined temperatures, triggering lighting and alarms. Even in low-light and harsh environments, the thermal camera with AI analytics (deep learning algorithms) detects intrusion events with very low nuisance alerts. The camera adheres to the IP66 standard, and can be powered through PoE.
GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.
- General Information
- Manufacturer
- GeoVision, Inc
- Manufacturer Website Address
- http://www.geovision.com.tw
- Brand Name
- GeoVision
- Product Type
- Network Camera
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Number of IR LEDs
- 2
- Camera Iris
- Fixed
- AI-powered
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- Thermal Image Sensor Type
- Vanadium Oxide Uncooled Focal Plane Detector
- Color Supported
- Color
- Field of View
- Horizontal FOV 56° / Horizontal FOV 81°
- Effective Camera Resolution
- 5 Megapixel
- Number of Sensors
- 2
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 2592 x 1944
- Thermal Video Resolution
- 1280 x 720
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/1.6
- Maximum Thermal Focal Length
- 0.13"
- Exposure
- Shortest Shutter Speed
- 1/100000 Second
- Longest Shutter Speed
- 1/3 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Fast Ethernet
- Protocols
- ONVIF
- UDP
- IPv4
- IPv6
- DHCP
- NTP
- RTSP
- RTP
- RTCP
- PPPoE
- DDNS
- SMTP
- FTP
- SNMP
- HTTP
- 802.1X
- UPnP
- HTTPS
- QoS
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 9 W
- Input Voltage
- 12 V DC
- Power Source Type
- PoE
- DC
- Physical Characteristics
- Form Factor
- Eyeball
- Diameter
- 4.4"
- Weight (Approximate)
- 1.50 lb
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- Built-in Speaker
- Defog
- 3D Digital Noise Reduction
- Face Detection
- Motion Detection
- Privacy Masking
- Alarm Triggering
- Cross Line Detection
- Built-in Microphone
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- GV-TMEB5800 Network Camera
- Eyeball Dome
- Waterproof Rubber
- Screw Kit
- Hex Key
- Drill Template Paster
- Download Guide
- Ingress Protection Rating
- IP66
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
