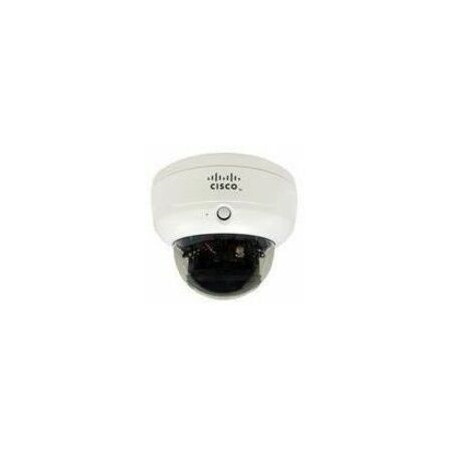

The Cisco Video Surveillance 8620 IP Camera is an indoor, high-definition, full-functioning video endpoint with industry-leading image quality and processing power. The camera is capable of 1920 x 1080 resolution while optimizing network utilization with H.265, H.264, or Motion JPEG (MJPEG) compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 8620 IP Camera offer a variety of benefits, including:
- True High-Definition (HD) video: The camera streams crisp and clear video at resolutions up to 1920 x 1080 while maintaining low network bandwidth.
- P-Iris lens: The camera supports a P-Iris lens, which allows greater control of the lens aperture and produces a sharper image over typical DC iris lenses.
- True Wide Dynamic Range (WDR): 140 db dynamic range for scenes that contain both light and dark areas.
- Quad Streaming: The camera can stream H.265, H.264, and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
- Day and night operation: The camera provides true day-night functionality and includes an infrared filter, which automatically switches to night mode in low-light scenes and can be set to manual, automatic, or scheduled control.
- Integrated infrared illuminator: The infrared illuminator with smart IR can light an area up to 50 meters away.
- Privacy regions: The camera supports up to five user-defined privacy regions. Any video in a privacy region is masked in the video stream.
- Local storage: Video data can automatically be recorded to a MicroSD card when the camera loses network connectivity.
- Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
- Open API: Support for Open Network Video Interface Forum (ONVIF) Profile S and Profile G allows for standards-based interoperability and communications with other ONVIF appliances.
- Flexible power options: The cameras supports Power over Ethernet (PoE) 802.3af Class 0, 12VDC, and 24VAC.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Condition
- Remanufactured
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 164.04 ft
- Night Vision Type
- Infrared
- Camera Iris
- P-iris
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2"
- Color Supported
- Color
- Field of View
- H: 46° to 120°, V: 26° to 60°, D: 53° to 152°
- Video
- Video Formats
- H.264
- H.265
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Lens Included
- Yes
- Maximum Aperture
- f/1.3
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Fast Ethernet
- Protocols
- ONVIF
- IPv6
- TCP/IP
- HTTP
- HTTPS
- UPnP
- RTP
- RTCP
- RTSP
- IGMP
- CIFS
- SMB
- SMTP
- FTP
- DHCP
- NTP
- DNS
- DDNS
- PPPoE
- SNMP
- 802.1X
- UDP
- ICMP
- ARP
- SSL/TLS
- NTCIP
- DSCP
- QoS (CoS/DSCP)
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 10.70 W
- Input Voltage
- 24 V AC
- 12 V DC
- Power Source Type
- AC
- DC
- PoE
- Physical Characteristics
- Form Factor
- Dome
- Height
- 5.4"
- Width
- 4.1"
- Weight (Approximate)
- 1.08 lb
- Environmental Conditions
- Minimum Operating Temperature
- 14°F (-10°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Day/Night
- Built-in IR LED
- Privacy Masking
- HTTPS Encryption
- Mirror
- White Balance
- Digital Image Stabilization
- Highlight Compensation (HLC)
- 3D Noise Reduction
- Back Light Compensation (BLC)
- Indoor/Outdoor
- Indoor
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
