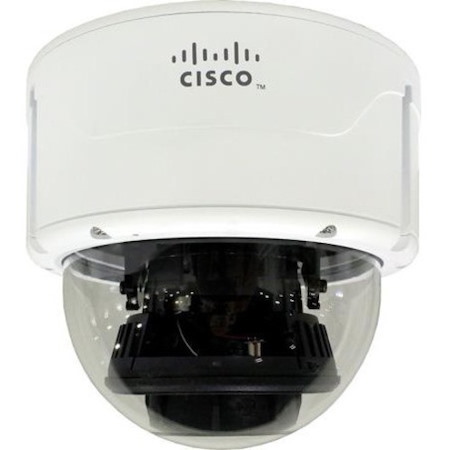

The Cisco® Video Surveillance 8630 IP Camera is a high-definition, full-functioning video endpoint with industry-leading image quality and processing power in an outdoor enclosure. The camera is capable of 1920 x 1080 resolution while optimizing network utilization with H.265, H.264, or Motion JPEG (MJPEG) compression. Contact closures allow integration with access control systems. With its open, standardsbased design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 8630 IP Camera offer a variety of benefits, including:
- True High-Definition (HD) video: The camera streams crisp and clear video at resolutions up to 1920 x 1080 while maintaining low network bandwidth.
- P-Iris lens: The camera supports a P-Iris lens, which allows greater control of the lens aperture and produces a sharper image over typical DC iris lenses.
- True Wide Dynamic Range (WDR): 140 dB dynamic range for scenes that contain both light and dark areas.
- Streaming: The camera can stream H.265, H.264, and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
- Day and night operation: The camera provides true day-night functionality and includes an infrared filter, which automatically switches to night mode in low-light scenes and can be set to manual, automatic, or scheduled control.
- Integrated infrared illuminator: The infrared illuminator with smart IR can light an area up to 50 meters away.
- Privacy regions: The camera supports up to five user-defined privacy regions. Any video in a privacy region is masked in the video stream.
- Local storage: Video data can automatically be recorded to a MicroSD card when the camera loses network connectivity.
- Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
- Open API: Support for Open Network Video Interface Forum (ONVIF) Profile S and Profile G allows for standards-based interoperability and communications with other ONVIF appliances.
- Flexible power options: The camera supports Power over Ethernet (PoE) 802.3at (Class 4), 12VDC, and 24VAC.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- 8000
- Product Condition
- Refurbished
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 164.04 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- 46° to 120° (horizontal) 26° to 60° (vertical) 53° to 152° (diagonal)
- Video
- Video Formats
- H.264
- H.265
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Lens Included
- Yes
- Maximum Aperture
- f/1.3
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Height
- 6.1"
- Width
- 5.4"
- Weight (Approximate)
- 2.87 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Wide Dynamic Range
- Day/Night
- Built-in IR LED
- Privacy Masking
- SD Card Local Storage
- Audio Compression
- Automatic White Balance
- Auto Gain Control
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Digital Noise Reduction
- Digital Image Stabilization
- HTTPS Encryption
- Alarm Detection
- Alarm Triggering
- Indoor/Outdoor
- Outdoor
