- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Type
- Speaker
Two-Way Full-Range Loudspeaker with 1 x 12" LF

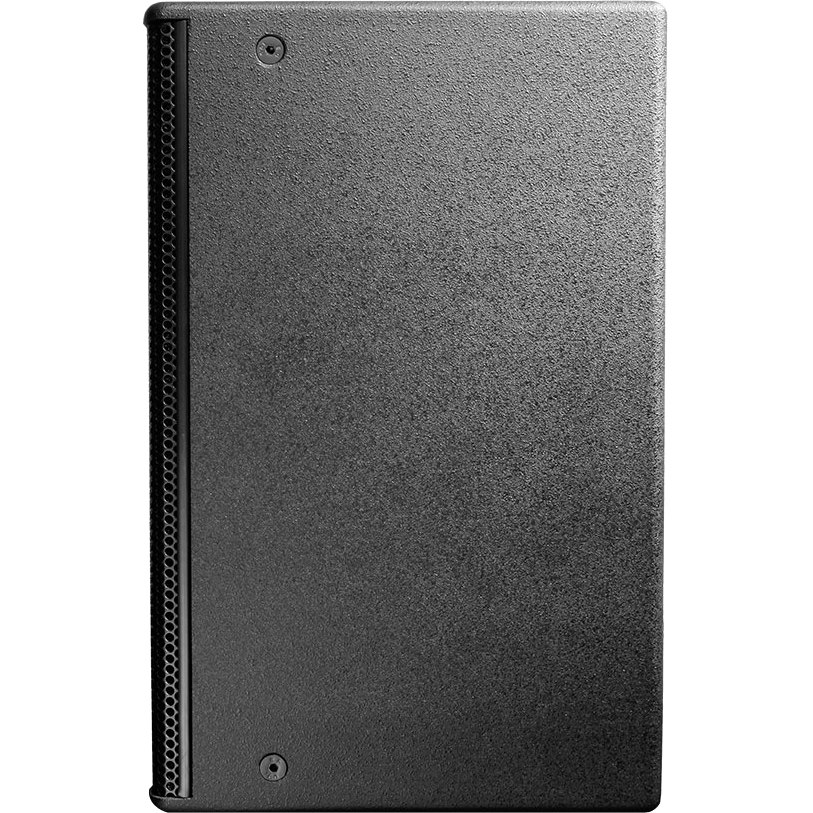

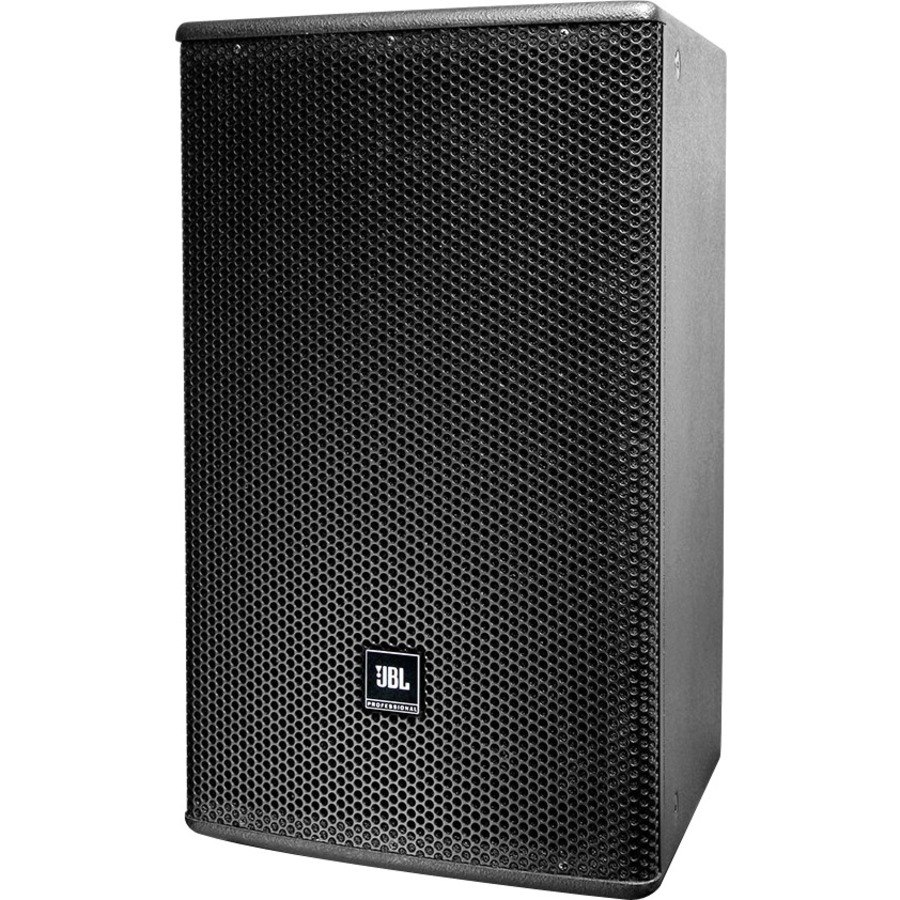

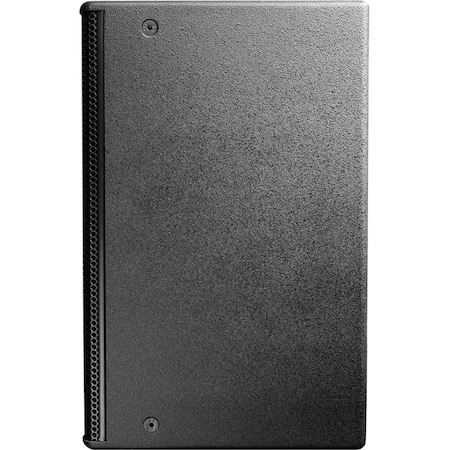

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 250 W
- PMPO Output Power
- 1000 W
- Woofer Driver Size
- 12"
- Tweeter Driver Size
- 1"
- Minimum Frequency Response
- 63 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 97 dB
- Physical Characteristics
- Product Color
- White
- Form Factor
- Wall Mountable
- Height
- 23.6"
- Width
- 14.6"
- Depth
- 15.43"
- Weight (Approximate)
- 38.14 lb
