Applications:

• Sports Facilities
• Themed Entertainment Venues
• Outdoor Entertainment Centers
• Cruise Ships
• Water Parks

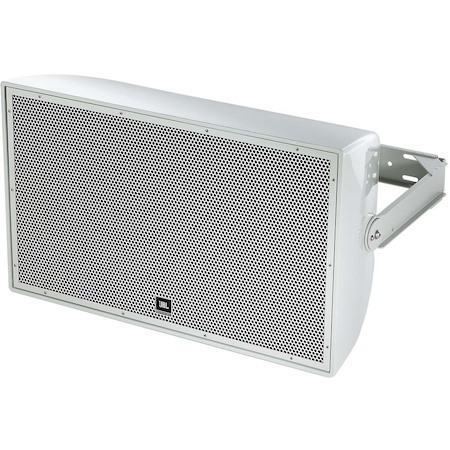

The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 16-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system can be operated as an 8-ohm device and is equipped with a 400W transformer for 70/100V applications.

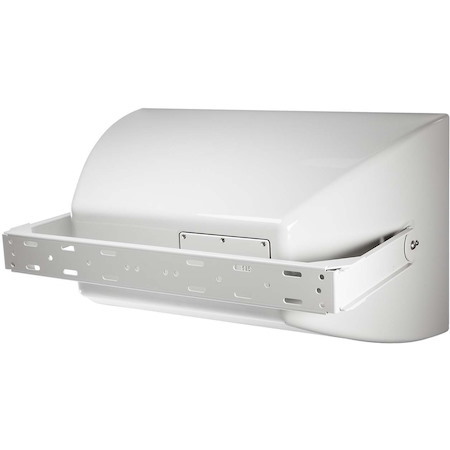

A corrosion-resistant extra-thick zincplated polyester powder coated U-type mounting bracket is included.

The AW566-LS is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

• General Information
• • Manufacturer
  • Harman International Industries, Inc
  • Manufacturer Website Address
  • http://www.harman.com
  • Brand Name
  • JBL Professional
  • Product Series
  • AE
  • Product Type
  • Speaker
