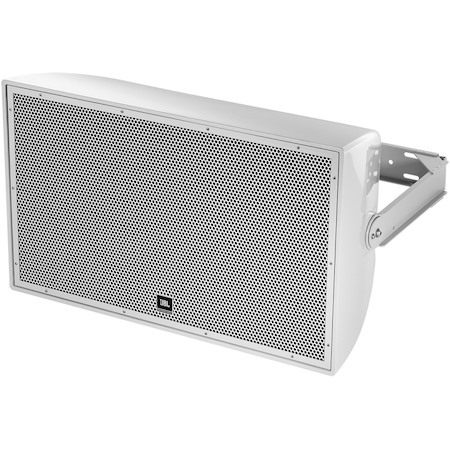

Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 12"" LF for Life Safety Applications
The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Type
- Speaker
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 400 W
- PMPO Output Power
- 1600 W
- Woofer Driver Size
- 12"
- Tweeter Driver Size
- 1.50"
- Minimum Frequency Response
- 102 Hz
- Maximum Frequency Response
- 18 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 98 dB
- Features
- Lightweight
- Dual Voice Coils
- Physical Characteristics
- Product Color
- Gray
- Durability
- Weather Resistant
- Corrosion Resistant
- Speaker Installation
- Outdoor
- Height
- 16.1"
- Width
- 28.8"
- Depth
- 17.80"
- Weight (Approximate)
- 55.56 lb
- Miscellaneous
- Package Contents
- High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
- U-type Mounting Bracket
- Application/Usage
- Sports Field
- Theme Bar
- Entertainment Center
- Cruise Ship
- Park
