- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL
- Product Type
- Speaker

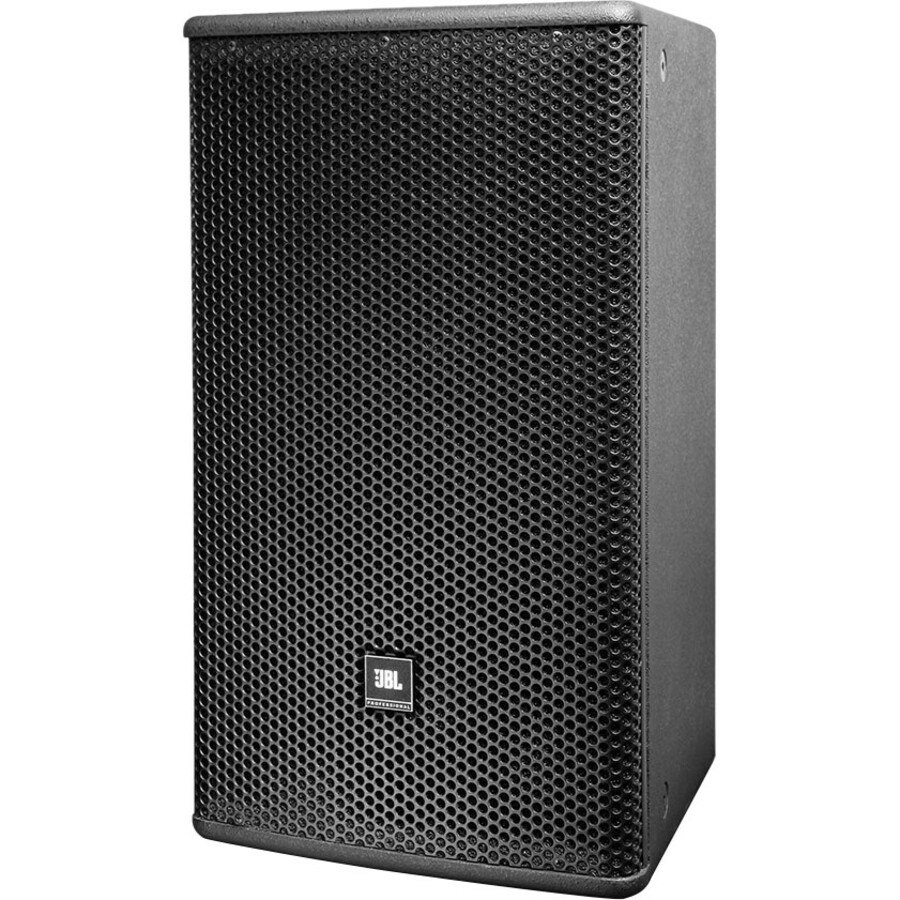

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

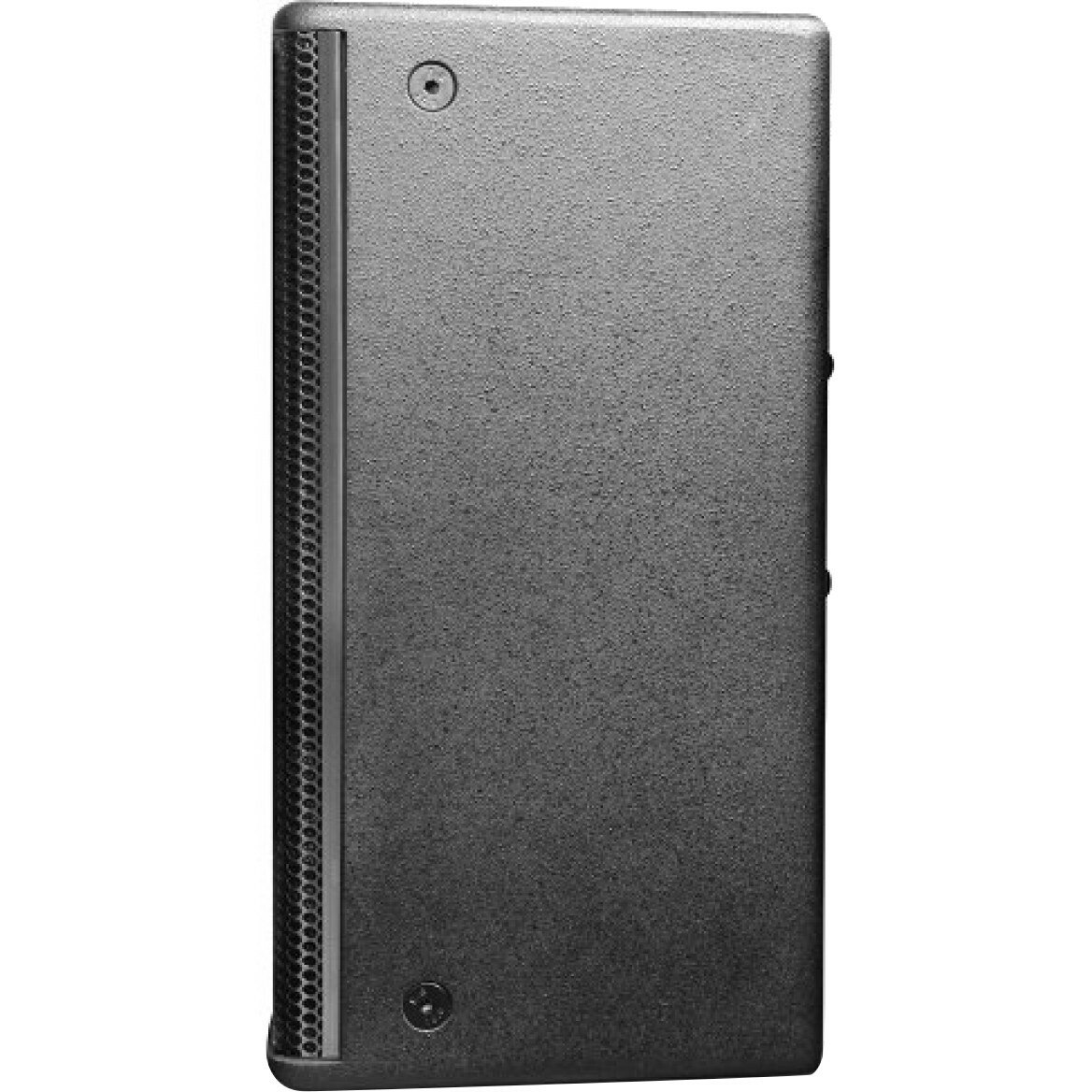

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL's AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 200 W
- PMPO Output Power
- 800 W
- Woofer Driver Size
- 10"
- Tweeter Driver Size
- 1"
- Minimum Frequency Response
- 68 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 95 dB
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Wall Mountable
- Woofer Diameter
- 10"
- Height
- 21.1"
- Width
- 12.2"
- Depth
- 12.95"
- Weight (Approximate)
- 28.88 lb
