- General Information
- Manufacturer
- Vivotek, Inc
- Manufacturer Website Address
- http://www.vivotek.com
- Brand Name
- Vivotek
- Product Series
- C
- Product Type
- Network Camera

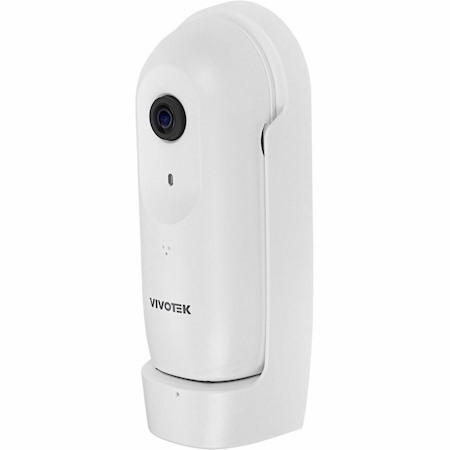

VIVOTEK's CC9160-H is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The inconspicuous design makes it a great choice for retail, convenience stores, hotels, classrooms, and cafes. With 120 dB WDR Pro for high contrast lighting environments, the 180° panoramic views in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation onto any wall. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. Included digital input and digital output connections also add to the CC9160-H's security capabilities.
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.8"
- Color Supported
- Color
- Field of View
- 180° (Horizontal) 100° (Vertical) 180° (Diagonal)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 1.66 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.95
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Power Source Type
- PoE
- Physical Characteristics
- Mount Type
- Wall Mount
- Desk Mount
- Product Color
- White
- Height
- 4.7"
- Width
- 2"
- Depth
- 1.5"
- Weight (Approximate)
- 2.86 oz
- Environmental Conditions
- Minimum Operating Temperature
- 14°F (-10°C)
- Maximum Operating Temperature
- 113°F (45°C)
- Miscellaneous
- Features
- Wide Dynamic Range
- Smart Stream
- Built-in Microphone
- Auto Flip
- Mirror
- White Balance
- 3D Digital Noise Reduction
- Highlight Compensation (HLC)
- Back Light Compensation (BLC)
- Gain Control
- Privacy Masking
- Defog
- Indoor/Outdoor
- Indoor
- Package Contents
- CC9160-H Network Camera
- Quick installation guide
- Mounting bracket
- Tilt bracket
- Screw pack
