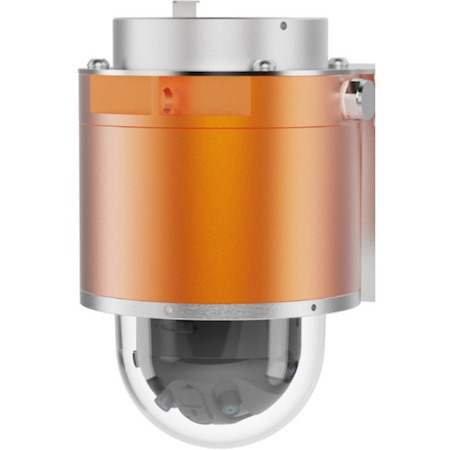

The TNM-P9022EPT3-Z is a 2MP x 4 CH stitched panoramic camera, providing 8.3/7.3MP resolution, designed for locations with hazardous chemicals and combustible gases/particles
- FM (Factory Mutual Insurance) certified, C1/D1 certification
- Marine-ready Aluminum and Dual patented technology
- PoE+ powered
- 180° and 209° mode switchable
- Extreme WDR (120db)
- Intelligent Video analytics
- Optional mounts required for installation
- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Series
- T
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- H: 209°/180°, V:83°
- Effective Camera Resolution
- 8.3 Megapixel
- Number of Sensors
- 4
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- H.265M
- H.265B
- H.265H
- H.264M
- H.264B
- H.264H
- Maximum Video Resolution
- 4608 x 1800
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.6
- Exposure
- Shortest Shutter Speed
- 1/12000 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Durability
- Corrosion Resistant
- Water Resistant
- Dust Resistant
- Explosion Proof
- Weather Resistant
- Damage Resistant
- Height
- 13.7"
- Width
- 8.6"
- Weight (Approximate)
- 27 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- Wide Dynamic Range
- PTZ
- Video Content Analytics
- Day/Night
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Digital Noise Reduction
- Defog
- Motion Detection
- Privacy Masking
- Auto Gain Control
- Automatic White Balance
- Enter/Exit Detector
- Tamper Detection
- Audio Detection
- Microphone In
- Audio Compression
- SD Card Local Storage
- Ingress Protection Rating
- IP66
- IP67
- Country of Origin
- United States
