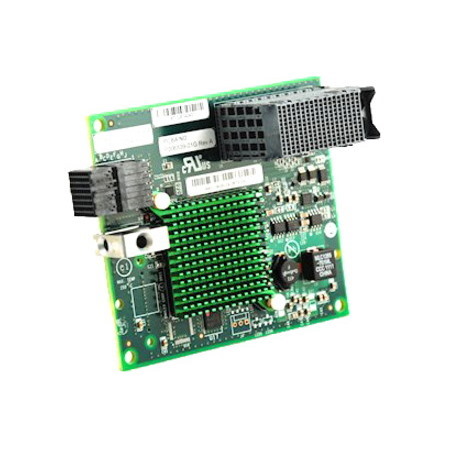

The network architecture on the IBM Flex System platform has been specifically designed to address network challenges, giving you a very scalable way to integrate, optimize and automate your data center. The Flex System™ FC3052 2-port 8Gb Fibre Channel Adapter enables high speed access for Flex System compute nodes to an external storage area network (SAN). This adapter is based on the proven Emulex Fibre Channel stack, and works with any of the 8 Gb or 16 Gb IBM Flex System Fibre Channel switch and pass-thru modules.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- Flex System
- Packaged Quantity
- 1
- Product Type
- Fibre Channel Host Bus Adapter
- Technical Information
- Total Number of Fibre Channel Ports
- 2
- Host Interface
- PCI Express 2.0
- Fiber Channel Port Type
- N_Port
- F_Port
- Fibre Channel Class Supported
- Class 2
- Class 3
- Topology
- Point-to-Point
- Media & Performance
- Data Transfer Rate
- 8 Gbit/s
- Physical Characteristics
- Form Factor
- Plug-in Card
- Width
- 3.9"
- Depth
- 3.1"
- Weight (Approximate)
- 4.80 oz
