- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Type
- PDU

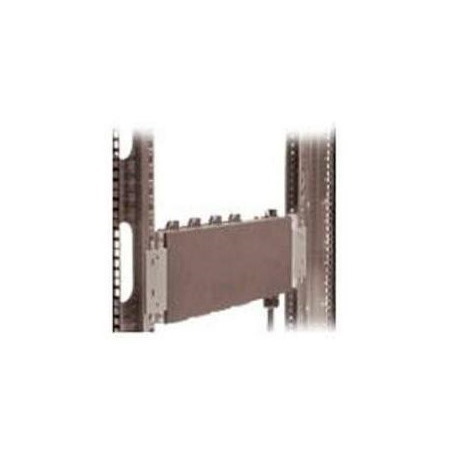

Modular PDUs have a unique modular architecture designed specifically for the dense data center customers who want to maximize their power distribution and space efficiencies in the rack. Providing easy accessibility and reduced cable clutter, the Modular PDUs offer you the flexibility to easily mount your units in several different locations within the rack, without having to sacrifice valuable rack U-space.
- Warranty
- Limited Warranty
- 3 Year
- Parts Warranty/Labor
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Plug/Connector Detail
- 1 x NEMA L6-30P
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 28 x IEC 60320 C13
- Protection Type
- Overload Protection
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Power Rating (VA)
- 4992 VA
- Circuit Breaker
- Yes
- Physical Characteristics
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Number of Cord/Cable
- 1
- Cord Length
- 12
- Height
- 1.6"
- Width
- 5.6"
- Depth
- 17.5"
- Weight (Approximate)
- 18.10 lb
- Miscellaneous
- Package Contents
- Modular 4992VA PDU
- One Power Cable
- Rack Mounting kit
- One Control and Four Extension Bars
- 1U Mounting brackets/hardware for Control Unit
- Two 10A, IEC320 -C14 to IEC 320 -C13 jumper cables, each 4.5 ft (1.37 m) long
- Mounting brackets for Extension Bars
- Cord Retention bracket for the Control Unit
- Tie wraps
- Install Card
- Additional Information
- Unique modular design architecture
- Consolidate and maximize cord management
- Easily accessible outlets
Control Unit:
- Input: 3.6m attached cable with L5-30P
- Output: Four IEC320-C19 (12A ea)
Extension Bars:
- Input: 2m attached cord with IEC320-C20.
- Output: Each Bar has 8 C13 outlets (10A max per outlet, 12A max per Bar).
- Compatibility
- HP 9000 Series Racks
- 10000 Series Racks
- Certifications & Standards
- EN 60320
