- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Line
- EdgeConnect
- Product Type
- Router

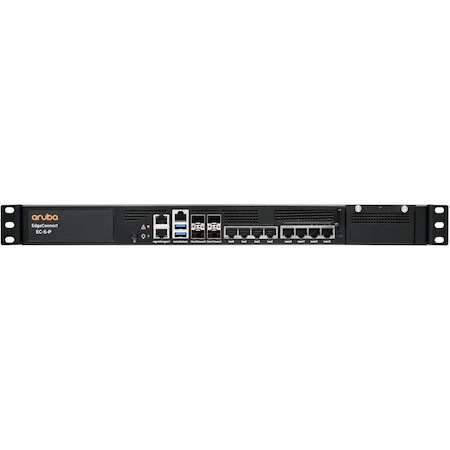

The HPE Aruba Networking EdgeConnect EC-S-P is a compact form factor thin edge branch gateway appliance that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/5G/LTE, and internet based hybrid WAN data paths and a control plane that is automated and secured by the HPE Aruba Networking WAN Orchestrator centralized management software providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications. Key features of the EdgeConnect Enterprise EC-S-P include compact size, quiet operations, flexible mounting options, 8 x RJ45 10/100/1000 Mbps ports plus 4 x 1/10 Gbps SFP+ ports (pluggable), and high availability through optional dual redundant power supply and built-in storage redundancy, making it an ideal appliance for large branch and remote office environments with typical WAN bandwidth from 10 Mbps to 3 Gbps.
- Interfaces/Ports
- Total Number of Ports
- 8
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of WAN Ports
- 4
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- Networking Standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.1Q
- IEEE 802.3z
- IEEE 802.3ae
- Power Description
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 300 W
- Power Source
- AC
- Physical Characteristics
- Form Factor
- Rail Mountable
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 16.5"
- Weight (Approximate)
- 18.14 lb
