- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL
- Product Line
- Control
- Product Series
- 40
- Product Type
- Speaker

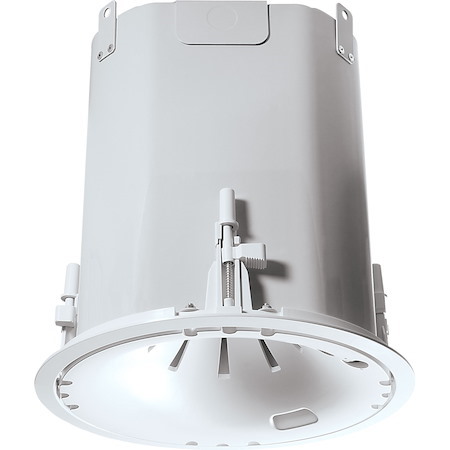

The Control 47HC features a narrow 75° coverage pattern ideal for use in highly reverberant spaces and high ceiling applications. This focused pattern helps minimize sound reflecting off of room surfaces as well as, time arrival anomalies from adjacent loudspeakers resulting in improved speech intelligibility. The Control 47HC features the same sonic character the Control 47C/T and is ideal for busy transit centers or large convention center spaces.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 75 W
- PMPO Output Power
- 150 W
- Woofer Driver Size
- 6.50"
- Woofer Driver Material
- Polypropylene
- Tweeter Driver Size
- 1"
- Tweeter Driver Material
- Dome
- Minimum Frequency Response
- 55 Hz
- Maximum Frequency Response
- 17 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 93 dB
- Physical Characteristics
- Woofer Material
- Polypropylene
- Form Factor
- In-ceiling
- Depth
- 13.82"
- Diameter
- 13.1"
- Weight (Approximate)
- 14.11 lb
- Miscellaneous
- Package Contents
- Control 47HC Speaker
- C-ring Support Backing Plate
- 2 x Tile Support Rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
- Knockout Strain Relief
- Cutout Template
- Paint Shield
- 2 x Removable Locking Multipin Connectors
- Certifications & Standards
- UL1480
- UL2043
- NFPA90
- NFPA 70
- S7232/UL
- UL1876
- IEC60849
- EN60849
- Country of Origin
- China
