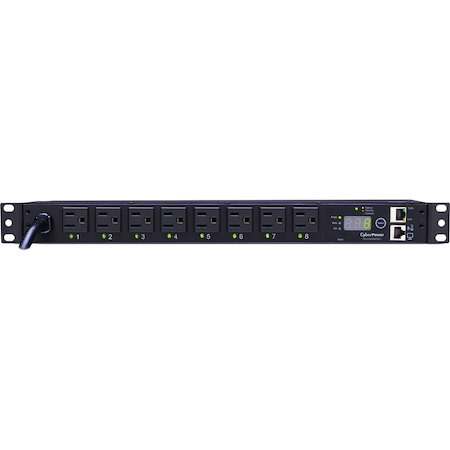

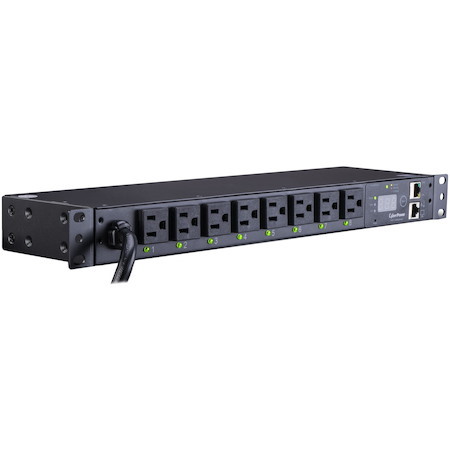

The CyberPower (PDU15SW8FNET) 8-outlet 1U rack mount switched power distribution unit (PDU) provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. Outlets can be managed individually over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the PDU. The CyberPower Management Console offers remote management of the unit: monitoring PDU vitals as well as controlling outlets and networked clients.
The unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted horizontally or vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Switched
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Switched
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Product Color
- Black
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 17.1"
- Depth
- 4.4"
- Weight (Approximate)
- 5.29 lb
- Miscellaneous
- Package Contents
- Switched PDU RM 1U PDU15SW8FNET 15A 8-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Certifications & Standards
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
