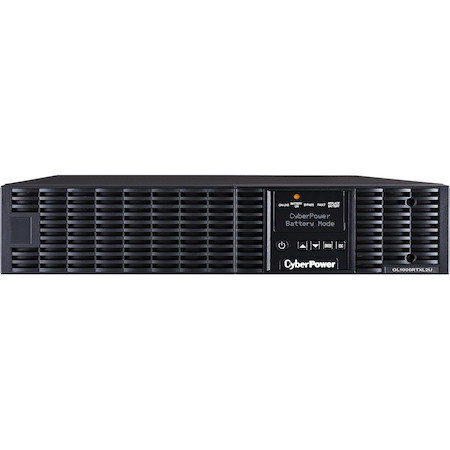

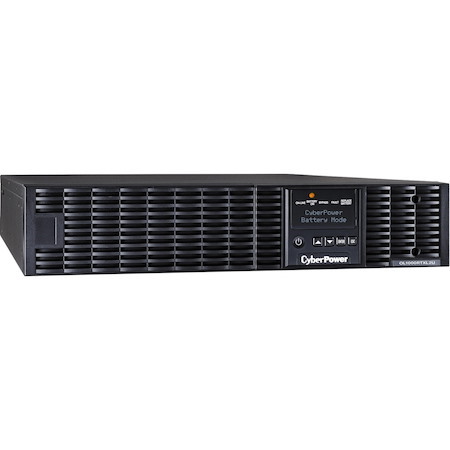

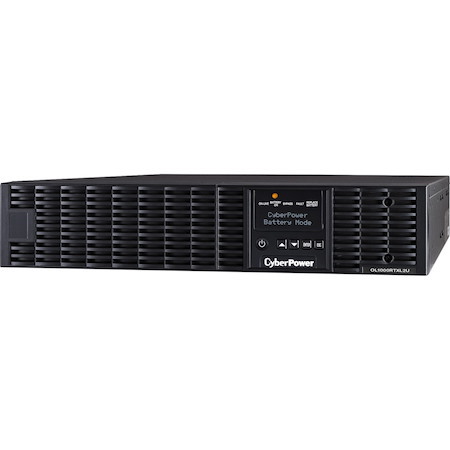

CyberPower OL1000RTXL2U Smart App Online UPS Systems

  • Part: 1577658
  • Model: OL1000RTXL2U
$867.00
FREE DELIVERY

Availability

In Stock

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL1000RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1000RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

More from the Manufacturer

  • General Information
    • Manufacturer
    • CyberPower Systems, Inc
    • Manufacturer Website Address
    • https://www.cyberpowersystems.com/
    • Brand Name
    • CyberPower
    • Product Series
    • Smart App Online UPS
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 3 Year
    • Directly Connected Equipment Guarantee
    • $400000 Lifetime

  • Technical Information
    • Plug/Connector Type
    • NEMA 5-15P
    • Receptacle Type
    • NEMA 5-15R
    • Receptacle Detail
    • 8 x NEMA 5-15R
    • Transfer Time
    • 0 ns
    • Dataline Protection
    • RJ-11
    • RJ-45
    • Overload Protection
    • Yes
    • EMI/RFI Noise Filter
    • Yes
    • Energy Saving
    • ECO Mode Efficiency >94%
  • Power Description
    • Load Capacity (VA)
    • 1000 VA
    • Input Voltage
    • 120 V AC
    • Input Voltage Range
    • 100 V AC - 125 V AC
    • Output Voltage
    • 100 V AC
    • 110 V AC
    • 115 V AC
    • 120 V AC
    • Input Frequency
    • 70 Hz
    • Waveform Type
    • Sine Wave
    • Surge Energy Rating
    • 1780 J
  • Management
    • Network Management
    • SNMP/HTTP Remote Monitoring
    • Alarm
    • Battery Mode
    • Low Battery
    • Overload
    • UPS Fault
  • Controls/Indicators
    • Status Indicators
      • Power On
      • Line Mode
      • Battery Mode
      • Bypass Mode
      • Fault
      • Replace Battery
  • Interfaces/Ports
    • Serial Port
    • Yes
    • USB (HID Compliant) Port
    • Yes
  • Battery Information
    • Number of Batteries
    • 3
    • Battery Characteristics
    • Maintenance-free
    • Battery Chemistry
    • Lead Acid
    • Battery Size
    • 12V
    • Battery Capacity
    • 9000 mAh
    • Backup/Run Time (Full Load)
    • 7.40 Minute
    • Backup/Run Time (Half Load)
    • 20 Minute
    • Typical Battery Recharge Time
    • 4 Hour
  • Environmental Conditions
    • Maximum Operating Temperature
    • 104°F (40°C)
    • Storage Temperature
    • -4°F (-20°C) - 113°F (45°C)
    • Maximum Operating Elevation
    • 10000 ft
    • Maximum Storage Elevation
    • 50000 ft
    • Sound Emission (A-Weighted)
    • 38 dB(A)
    • Thermal Dissipation
    • 31.65 W
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Rack/Tower
    • Rack Height
    • 2U
    • Height
    • 3.5"
    • Width
    • 17"
    • Depth
    • 16.9"
    • Weight (Approximate)
    • 39.60 lb
  • Miscellaneous
    • Package Contents
      • Smart App Online OL1000RTXL2U 1000VA 100-125V Sine Wave LCD Rack/Tower UPS
      • PowerPanel Business Edition Software CD
      • User Manual
      • USB Cable
      • Serial Cable
      • Phone Cable
      • Mounting Hardware
      • Registration Card
    • Additional Information
      • Smart Battery Management (SBM) Mode: Yes
      • Circuit Breaker: 15A
      • Cold Start: Yes
      • Input Power Factor: 0.99
      • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
      • Crest Factor: 3:1
      • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
      • Harmonic Distortion: < 3% at Linear Load
      • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
      • Output Power Factor: 0.9
      • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
      • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
      • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
      • Audible Alarms: Battery Mode
      • Dry Contacts: Yes
      • LCD: Multifunction LCD
      • Management Cable: USB Cable
      • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
      • Rotatable LCD Control Panel Option: Yes
      • Upgradeable firmware: Yes
      • Form Factor: Rack / Tower
      • Material of Construction: Metal
      • Mounting Hardware: Yes
      • Online Thermal Dissipation: 274 BTU/hr
      • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
      • Operating Relative Humidity: 0 - 90 % (non-condensing)
      • Operating Temperature: 32 - 104 °F (0 - 40 °C)
      • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
      • Storage Relative Humidity: 0 - 95% (non-condensing)
    • Certifications & Standards
    • UL1778
    • Software Included
    • PowerPanel® Business
    • Energy Star
    • Yes
    • Country of Origin
    • Philippines
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
