- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- HyperFlex
- Product Series

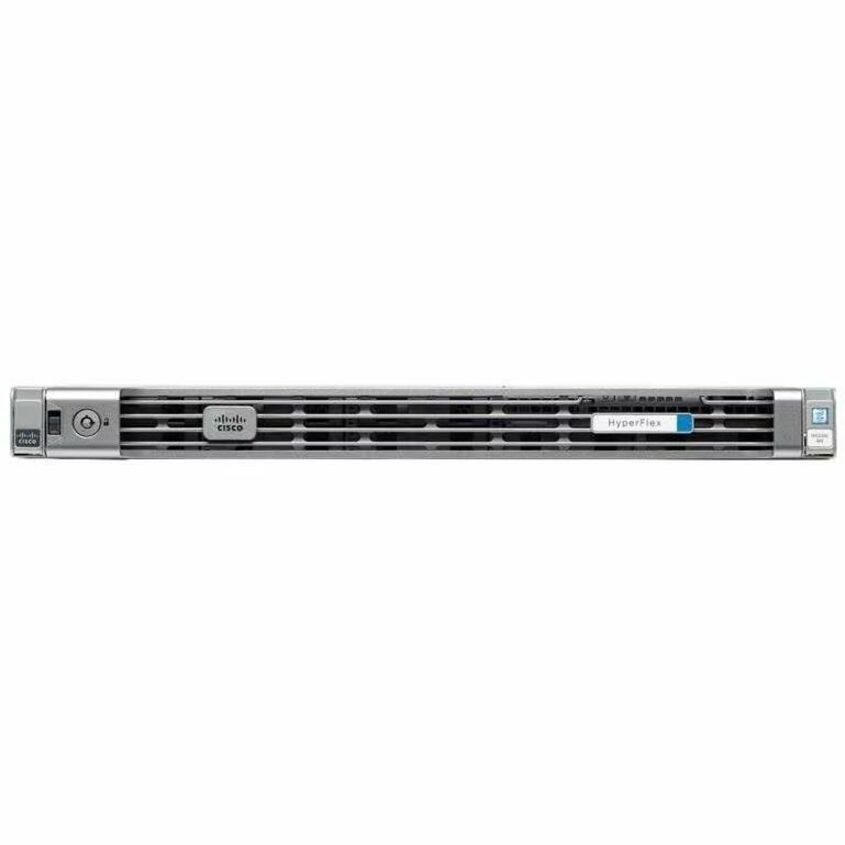

- HX220c M4
- Product Type
- Server
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- Processor Manufacturer
- Intel
- Processor Type
- Xeon
- Processor Model
- E5-2609 v4
- Processor Core
- Octa-core (8 Core)
- Processor Speed
- 1.70 GHz
- Memory
- Standard Memory
- 128 GB
- Maximum Memory Supported
- 1.50 TB
- Memory Technology
- DDR4 SDRAM
- Total Number of Memory Slots
- 24.0
- Number of Occupied Memory Slots
- 8
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- No
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of Internal 2.5" Bays
- 8
- Hot Swappable Bays
- Yes
- Display & Graphics
- Graphics Controller Manufacturer
- Matrox
- Graphics Controller Model
- G200e
- Graphics Memory Capacity
- 8 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 770 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 19"
- Depth
- 31"
- Weight (Approximate)
- 37.92 lb
