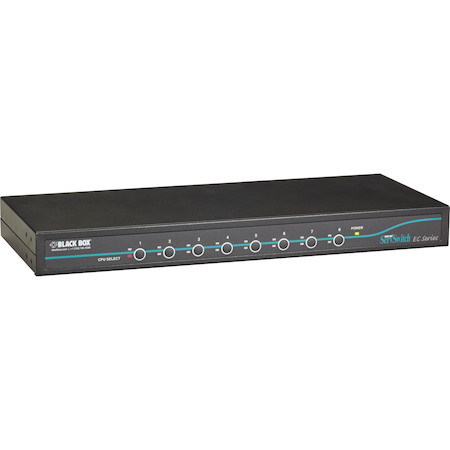

Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port

  • Part: 1155933
  • Model: KV9508A
$777.00
FREE DELIVERY

Availability

Out of Stock

Quick Facts

  • Manage up to eight servers with this simple plug-and-play KVM switch.
  • Resolutions up to 1920 x 1200.
  • Perfect for small server rooms.
  • 8-port DVI (single link) and USB KVM switch with USB/DVI console.

Further Details

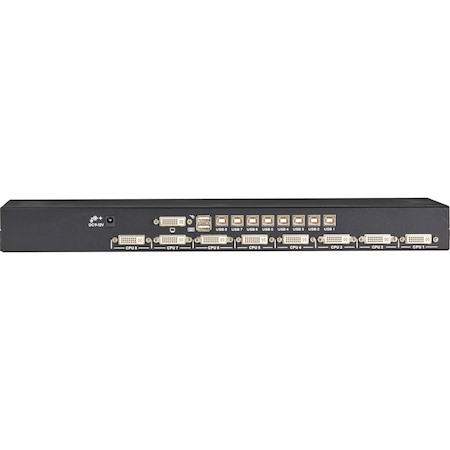

  • Choose the console mode by sliding a switch on the back panel.
  • Save rack space-only 1U high!
  • Supports Microsoft® IntelliMouse® (Pro).
  • Operating system independent and transparent to all applications.
  • Switch manually or use autoscan, which selects servers sequentially.
  • Save and store keyboard settings while switching.
  • Hot-pluggable keyboard/mouse ports.
  • Plug-and-play configuration.
  • DDC2B compatible.


Tight quarters.
Ideal for applications where you have a limited amount of space, the 1U-high 8-port DVI switch can be used on the desktop or mounted in a rack or cabinet.

Very switchable.
Switch between servers using front-panel buttons or hotkeys. Or you select the Autoscan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When Autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.

Set it and forget it.
System settings are stored in nonvolatile memory so you don't have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.

  • General Information
    • Manufacturer
    • Black Box Corporation
    • Manufacturer Website Address
    • http://www.blackbox.com
    • Brand Name
    • Black Box
    • Product Line
    • ServSwitch
    • Packaged Quantity
    • 1
    • Product Type
    • KVM Switchbox
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Number of Computers Supported
    • 8
    • Number of Local Users Supported
    • 1
    • Minimum Scan Interval
    • 3 Second
    • Maximum Operating Distance
    • 15 ft
  • Video
    • Graphic Mode
    • WUXGA
    • Maximum Video Resolution
    • 1920 x 1200
  • Interfaces/Ports
    • USB
    • Yes
    • DVI
    • Yes
    • Number of USB Ports
    • 10
    • Number of DVI Ports
    • 9
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
    • 9 V DC
  • Physical Characteristics
    • Form Factor
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 1.8"
    • Width
    • 17.3"
    • Depth
    • 7"
    • Weight (Approximate)
    • 5 lb
  • Miscellaneous
    • Package Contents
      • ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port
      • 1 x AC Power Adapter
      • 1 x 6-ft. Power Cable
      • Set of (4) Foot Pads
      • 2 X Mounting Brackets
      • Assortment Of Screws
      • User's Manual
    • Platform Supported
    • Mac
    • PC
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • Taiwan
