Emerald is the first KVM platform that supports pixel-perfect 4K DisplayPort video at 60 Hz over standard IP network switches. Image transmission with mathematically lossless compression visualizes every single pixel at 60 fps with 10-bit color depth.
For HD video, Emerald requires a standard Gigabit Ethernet network and possibly a 10 Gigabit aggregate switch, depending on how many endpoints you have. For 4K video, you'll need a standard 10 Gigabit Ethernet network with a 100-Gigabit aggregate switch for 20+ endpoints.

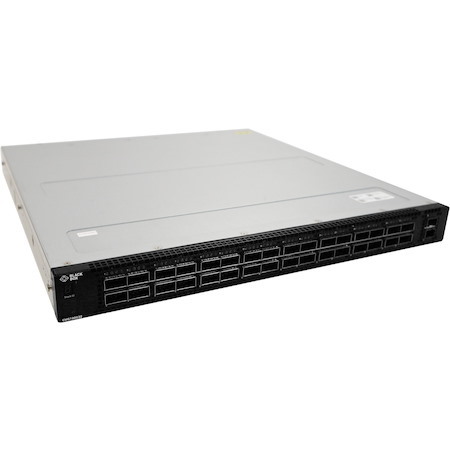

The Emerald 100-Gigabit Ethernet Network Switch, 32-Port works well with Emerald transmitters and receivers to support 4K connectivity to these endpoints. This high-performance Emerald network switch ensures trouble-free KVM over IP extension and matrix switching connections. The 1U-high switch has thirty-two 100GbE QSFP28 ports and two 10GbE SFP+ ports.
Supports Fail-Safe Operation

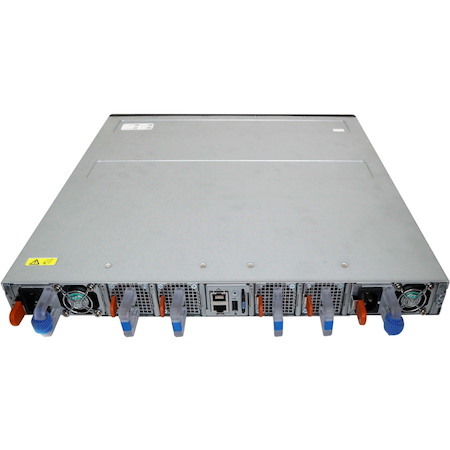

Redundant power supplies provide fail-safe operation, while fans keep the switch cool. The switch includes two hot-swappable AC power supply units (PSUs) and four hot-swappable fan units. The fans direct airflow from the I/O side to the power supply side.
Ports Provide Additional Functionality
The switch has one Micro USB-B console port, one RJ-45 console port, one 10/100/1000BASE-T Ethernet management port, one USB Type-A port for more file storage, and a four-core Intel central processing unit (CPU) system with 16 GB SDRAM and 64 GB SSD.
Easy to Monitor
Link/Activity LEDs indicate switch status at a glance. The switch also monitors temperature via a software-readable thermal monitor, has real-time clock (RTC) support, power management monitoring, and mounting holes to accommodate a two-hole ground lug.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Emerald®
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 Year Double Diamond™ Warranty (Standard)
- Technical Information
- Number of Computers Supported
- 128
- Number of Local Users Supported
- 32
- Device Type
- Rack KVM
- Video
- Graphic Mode
- 4K
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- USB Standard
- USB 2.0
- USB 2.0
- Yes
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of USB Ports
- 2
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 113°F (45°C)
- Power Description
- Input Voltage Range
- 100-240 VAC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 17.1"
- Depth
- 18.1"
- Weight (Approximate)
- 20.10 lb
- Miscellaneous
- Package Contents
- 100-Gigabit Ethernet Network Switch, 32-Port2 x POWER CORDS
- 1 x Set OF Rack Rails
- 1 x Information Sheet
- 1 x Console Cable RJ-45 TO DB9F
- 1 x Grounding Lug/Hardware
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin
- China
