- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- KVM Extender Transmitter

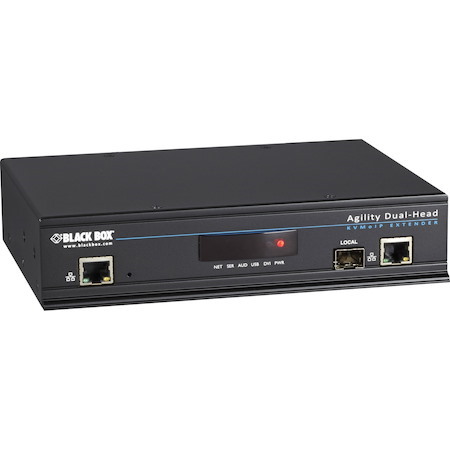

The Agility IP-Based KVM Extension system transmits DVI video, USB, and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller (ACR1000-CTL-24) to enable remote secure configuration of transmitters and receivers via a Web browser.
The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 2
- Maximum Operating Distance
- 330 ft
- Device Type
- KVM Extender
- Video
- Graphic Mode
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DVI
- Yes
- Headphone
- Yes
- Microphone
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 1
- Number of DVI Ports
- 2
- Physical Characteristics
- Transmitter Height
- 1.76"
- Transmitter Width
- 7.92"
- Transmitter Depth
- 4.80"
- Transmitter Weight (Approximate)
- 1.76 lb
- Miscellaneous
- Additional Information
This product works with:
- 192-Endpoint KVM-over-IP Matrix iPATH Controller
- 24-Endpoint KVM-over-IP Matrix iPATH Controller
- 288-Endpoint KVM-over-IP Matrix iPATH Controller
- 48-Endpoint KVM-over-IP Matrix iPATH Controller
- 96-Endpoint KVM-over-IP Matrix iPATH Controller
- KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
NOTE(s):
Product works with:
- Agility IP-Based KVM Extender, DVI and USB - Dual-Head Receiver (ACR1020A-R)
- Agility Controller (ACR1000A-CTL-24)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United Kingdom
- TAA Compliant
- Yes
