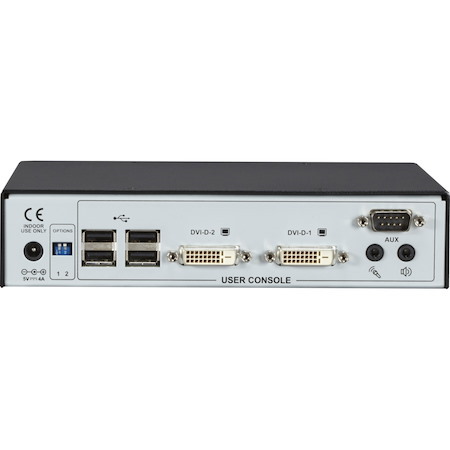

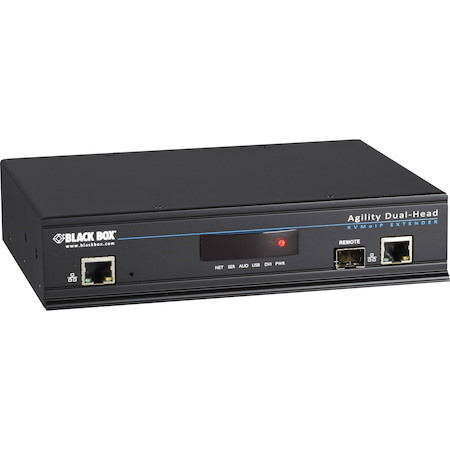

Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver

  • Part: 1778441
  • Model: ACR1020A-R
$1,934.00
FREE DELIVERY

Availability

In Stock
  • General Information
    • Manufacturer
    • Black Box Corporation
    • Manufacturer Website Address
    • http://www.blackbox.com
    • Brand Name
    • Black Box
    • Product Type
    • KVM Extender Receiver

The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Local Users Supported
    • 2
    • Maximum Operating Distance
    • 330 ft
    • Device Type
    • KVM Extender
  • Video
    • Graphic Mode
    • Full HD
    • Maximum Video Resolution
    • 1920 x 1080
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • USB
    • Yes
    • DVI
    • Yes
    • Headphone
    • Yes
    • Microphone
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
    • Number of USB Ports
    • 4
    • Number of DVI Ports
    • 2
  • Physical Characteristics
    • Receiver Height
    • 1.76"
    • Receiver Width
    • 7.92"
    • Receiver Depth
    • 4.80"
    • Receiver Weight (Approximate)
    • 1.76 lb
  • Miscellaneous
    • Additional Information

    • This product works with:

      • 192-Endpoint KVM-over-IP Matrix iPATH Controller
      • 24-Endpoint KVM-over-IP Matrix iPATH Controller
      • 288-Endpoint KVM-over-IP Matrix iPATH Controller
      • 48-Endpoint KVM-over-IP Matrix iPATH Controller
      • 96-Endpoint KVM-over-IP Matrix iPATH Controller
      • KVM-Over-IP Matrix, Dual-Head DVI-D,USB 2.0, KVM Transmitter
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
    • Country of Origin
    • United Kingdom
    • TAA Compliant
    • Yes
