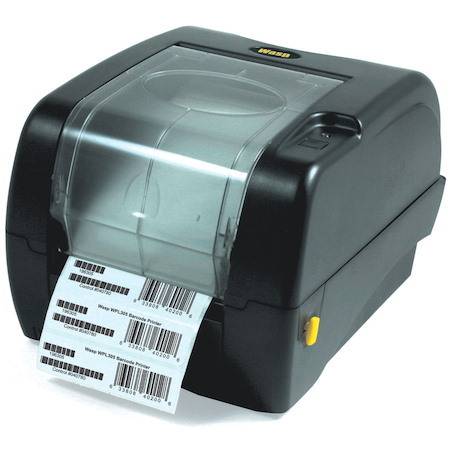

WPL305 Desktop Barcode Printer The Wasp WPL305 is a compact, powerful desktop barcode printer designed to meet your light- to medium-duty barcode printing requirements. Its durable construction, speed, and dual printing technologies make the WPL305 a leader in its class and one of the most popular printers in the Wasp line. Perfect for printing 4x6 shipping labels . The WPL305 offers both direct thermal and thermal transfer printing in one printer, reducing the need for additional printers for different printing processes. With print speeds up to 5" inches per second at 203 dpi resolution, the WPL305 is a cost effective way to print barcode labels of all types, including shipping labels, stock labels, asset tags, medical labels, and location labels. Print speed is supported by 8 MB of SDRAM, 4 MB of FLASH memory and multiple connectivity options including parallel, USB, and RS232. ZPL, EPL, and WPL emulation are also included to ensure application compatibility. The WPL305 includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty. Part Numbers: 633808402006, 633808402020, 633808402013
- General Information
- Manufacturer
- Wasp Barcode Technologies
- Manufacturer Website Address
- http://www.waspbarcode.com
- Brand Name
- Wasp
- Product Type
- Direct Thermal/Thermal Transfer Printer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 5 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 4.25"
- Barcode Symbology Supported
- Code 39
- Code 39C
- Code 93
- Code 128 UCC
- Code 128-A
- Code 128-B
- Code 128-C
- Code 11
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- MSI
- Plessey
- POSTNET
- PDF-417
- Maxi Code
- Data Matrix
- Peel Facility
- Yes
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 8 MB
- Memory Technology
- SDRAM
- Flash Memory
- 2 MB
- Interfaces/Ports
- Parallel Port
- Yes
- Serial Port
- Yes
- USB
- Yes
- Media Types & Handling
- Media Type
- Label
- Media Sensor
- Reflective Media Sensor
- Transmissive Media Sensor
- Cover Open Sensor
- Maximum Roll Diameter
- 5"
- Maximum Label Width
- 4.40"
- Label Core Size
- 1"
- Fonts & Emulation
- Language Emulation
- WPL
- ZPL
- EPL
- Physical Characteristics
- Height
- 7.4"
- Width
- 8.4"
- Depth
- 12.4"
- Miscellaneous
- Additional Information
- Compact Design
- Easy Media Supplies loading
- One Indicator LED (Two Color)
- Font Rotations: 0, 90, 180, 270 degrees
- Platform Supported
- PC
- Country of Origin
- Taiwan
