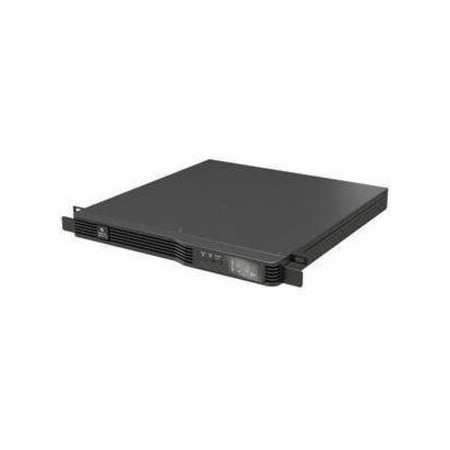

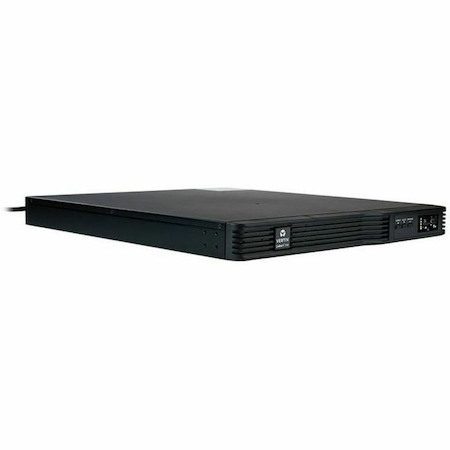

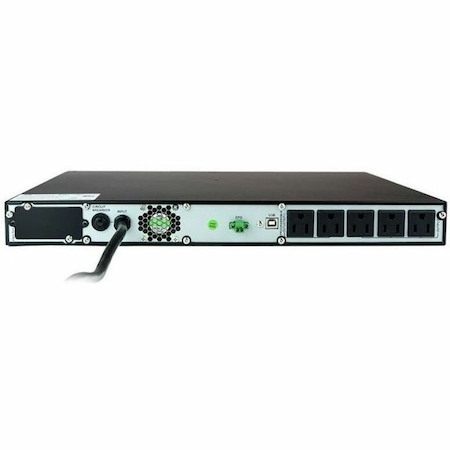

The Vertiv Liebert PSI5 UPS (PSI5-1000RM1201UN) is designed to protect electronic devices from downtime and damage that can be caused by power outages and fluctuating utility power. The 1U rack mount UPS is ideal when rack space is limited. Automatic voltage regulation (AVR) addresses utility fluctuations keeping your system supported and extending battery life. Pure sine wave output on battery ensures the best quality of power for your equipment. This line interactive UPS ensures availability of critical IT applications in network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. This model includes the Vertiv Liebert IS-UNITY-SNMP communication card to remotely monitor up to 50 UPS systems through the free Vertiv Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Series
- PSI5
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 year full (includes battery)
- Directly Connected Equipment Guarantee
- $400000
- Technical Information
- AVR
- Yes
- AVR Range
- Boost +93% / Buck -93%
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 5 x NEMA 5-15R
- Cord Length
- 10 ft
- Transfer Time
- 13 ms
- Phase
- Single Phase
- Application/Usage
- Electronic Device
- School
- Home
- Office
- Network Closet
- Data Center
- Mission Critical Equipment
- Server
- Safety
- Security System
- Network Workstation
- Large Network Peripheral
- Storage
- VoIP
- Media Closet
- POS
- IT Equipment
- Surge Suppression
- Yes
- Features
- Audible Alarm
- Power Description
- Load Capacity (VA)
- 1000 VA
- Load Capacity (Watt)
- 900 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 75 V AC - 146 V AC
- 0 V AC - 150 V AC
- Output Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
- 125 V AC
- Input Frequency
- 55 Hz
- 65 Hz
- 57 Hz
- 63 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 1372 J
- Circuit Breaker
- Yes
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- IS-UNITY-SNMP
- Alarm
- Overload
- Interfaces/Ports
- Serial Port
- No
- Network (RJ-45)
- No
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 4
- Battery Characteristics
- Valve-regulated, Non-spillable
- Battery Chemistry
- Lead Acid
- Battery Size
- 6V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 5 Minute
- Backup/Run Time (Half Load)
- 13 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 6 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -5°F (-20.6°C) - 122°F (50°C)
- Maximum Operating Elevation
- 9842.52 ft
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 17.7"
- Rack Height
- 1U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 36.40 lb
- Miscellaneous
- Package Contents
- PSI5-1000RM1201UN 1000VA Rack-Mountable UPS
- Rack Mount Ears
- USB Cable
- Safety Manual
- Quick Installation Guide
- Certifications & Standards
- UL1778, 5th Ed.
- FCC Part 15 Class A
- ANSI C62.41 Cat. A, Level 3
- ISTA 1A
- Software Included
- Free Download - Power Insight 2.2
- Energy Star
- No
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
