- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Type
- PDU
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

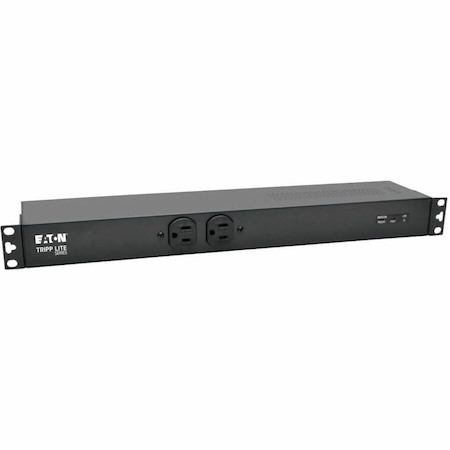

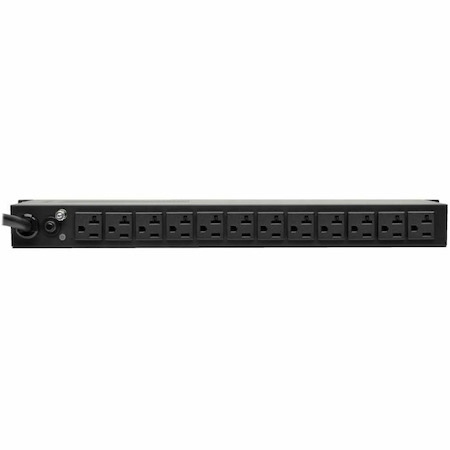

This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO6 features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A six-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
3840 Joules Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO6 covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- PDU Type
- Basic
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L5-20P
- NEMA 5-20P
- Receptacle Type
- NEMA 5-15R
- NEMA 5-15/20R
- Receptacle Detail
- 2 x NEMA 5-15R
- 12 x NEMA 5-15/20R
- Protection Type
- Circuit Protection
- Spike Protection
- Accidental Power Shutdown
- Overload Protection
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 100 V AC
- 120 V AC
- 127 V AC
- Power Rating (Watt)
- 2030 W
- Input Current
- 20 A
- Physical Characteristics
- Mounting Orientation
- Horizontal/Vertical
- Mount Type
- Rack-mountable
- Wall-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 17.5"
- Depth
- 4.5"
- Weight (Approximate)
- 4.60 lb
- Miscellaneous
- Package Contents
- PDUH20-ISO6 14-Outlets PDU
- NEMA 5-20P Input Adapter
- Rack-Mounting Hardware
- Owner's Manual
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
