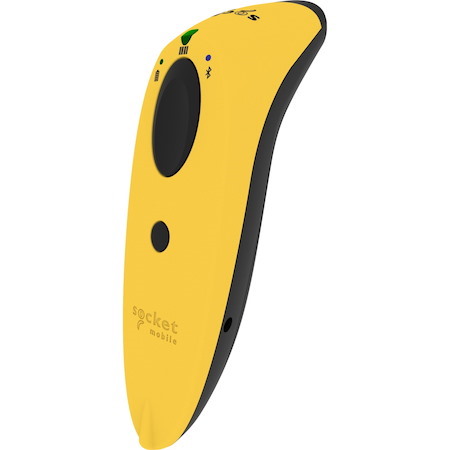

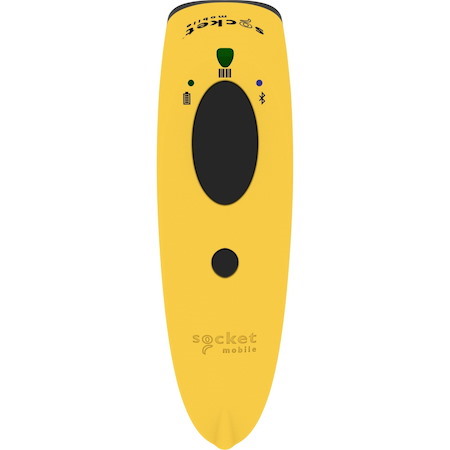

Linear Barcode Plus QR Code Scanner
The S720 can read both 1D and 2D barcodes on paper and on screen. As part of our SocketScan family of data readers, it can do all that your legacy barcode scanner can do, bringing you into the next wave of barcode and QR code scanning on mobile devices. The S720 barcode scanner is lightweight, ergonomically designed and comes with long-lasting batteries. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The SocketScan S720 is wireless for increased mobility and productivity helping to reduce human error. 2D barcodes provide the next step in versatility, functionality and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes and a 2D barcode scanner gives your business an accurate and easy way to track inventory and assets, scan products and digital IDs, or credentials from mobile wallets. Budget conscious - the S720 is a great every day general purpose 2D barcode scanner that scans most popular used 2D barcodes such as PDF417, QR Codes and Data Matrix.
- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- SocketScan
- Packaged Quantity
- 1
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
- Image Sensor Type
- Linear
- Scanning Distance
- 14.96"
- Stand Included
- Yes
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- 34°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 4 ft. drop to linoleum
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (Code 39)
- 5 mil
- Maximum Element Resolution (DataMatrix)
- 10 mil
- Network & Communication
- Bluetooth
- Yes
- Battery Information
- Battery Weight
- 1.92 oz
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) to 113°F (45°C)
- Storage Temperature
- -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing)
- 95%
- Physical Characteristics
- Form Factor
- Handheld
- Product Color
- Yellow
- Miscellaneous
- Compatibility
Apple - iPad, iPhone, iPod Touch
- Application/Usage
- Asset Tracking
- Loyalty Program
- Transportation
- Inventory
- Ticketing
- Delivery
- Hospitality
- Platform Supported
- PC
- Android
- Mac
- iOS
