- General Information
- Manufacturer
- Shuttle, Inc
- Manufacturer Website Address
- http://www.us.shuttle.com
- Brand Name
- Shuttle
- Product Line
- XPC slim
- Product Type
- Barebone System

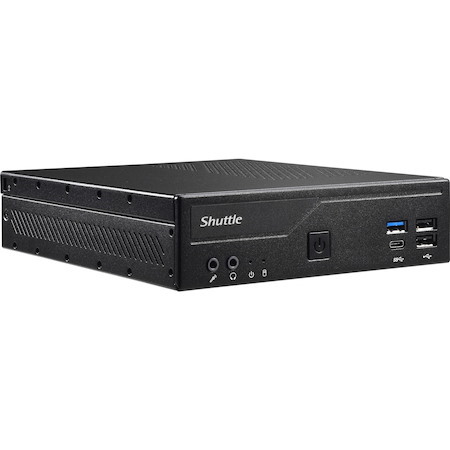

Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displays
The Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Supported
- Pentium Gold
- Celeron
- Core i7
- Core i5
- Core i3
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- H610
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 2.0
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- HD Graphics
- Graphics Memory Technology
- DDR4 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 8
- Number of USB 3.2 Gen 1 Ports
- 3
- USB Type-C (Front)
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Gen 1 Type-C
- Operating System
- Operating System Supported
- Windows 10 x64
- Windows 11 x64
- Linux
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 120 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Slim PC
- Height
- 1.7"
- Width
- 6.5"
- Depth
- 7.5"
- Weight (Approximate)
- 2.87 lb
- Miscellaneous
- Package Contents
- XPC slim DH610 Barebone System
- Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC)
- VESA Mount For 75/100 mm Standard (two metal brackets)
- 4 x Screws M3 x 5 mm (screws together VESA mount and PC)
- 4 x Screws M4 x 10 mm (to affix VESA mount on the PC)
- 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay)
- 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards)
- Driver DVD (Windows 64-bit)
- Serial ATA Cable For 2.5" Drive Including Power Cable
- External 120 W Power Adapter With Power Cord
- Protection Cap For CPU Socket (do not use if heatpipe or fan is mounted)
- Heatsink Compound
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
