- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- SmartZone
- Packaged Quantity
- 1 Pack
- Product Type
- Double Conversion Online UPS

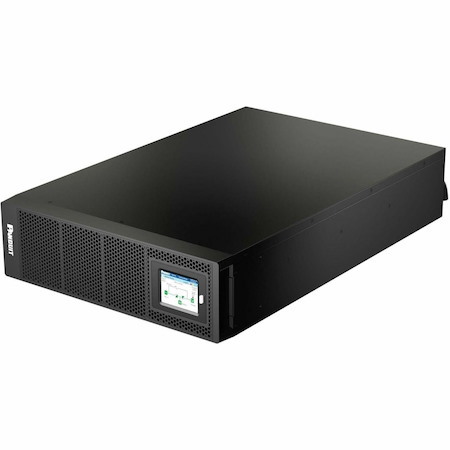

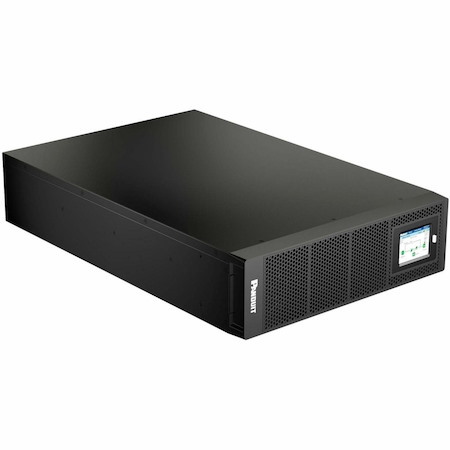

This pure sine wave Double Conversion 5-10KVA UPS, delivers efficient and reliable power protection and backup for your computer IT equipment. The UPS features a maintenance-free VRLA battery and is a 5-10kVA single-phase 208/230 volt unit. The pure Online Double Conversion system provides constant excellent electrical performance and comes standard with enhanced intelligent monitoring and network functions. The unit complies with ENERGY STAR® 2.0, EMC, and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT Infrastructure.
Key Features and Benefits | Rack/Tower convertible
Supports rack/tower installation with rotatable colorful touchscreen LCD panel
Online Double Conversion with fully digital control (EMEA unit only)
Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR), and surge protection
Wide input voltage range
110-280 VAC covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 98%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR 2.0 compliant for North America units
Output unity power factor
Means more active power for IT equipment load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Expandable battery packs
Allows to connect maximum five external battery packs, extending the UPS backup running time
Intelligent Battery Management:
Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easily shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without main input but with batteries
Intelligent fan speed regulation
Automatically adjustment of fan speed due to the ambient temperature and load percentage
Multiple communication interface
RS232/USB/intelligent slot, realizing communication, and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
Programmable outlet group with Smart Load Shedding
Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.
Touch-Screen colorful LCD
Colorful LCD with cold start button and LED indicators, providing intuitive display
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3 years for UPS & EBP and 2 years for battery
- Technical Information

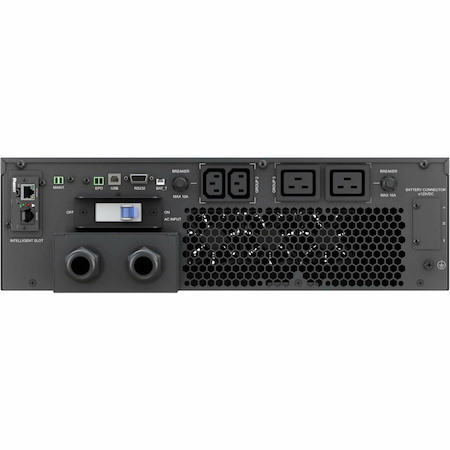

- Plug/Connector Type
- Hardwire Terminal (L + N + G)
- Receptacle Type
- IEC 60320 C19
- IEC 60320 C13
- Hard Wire (L + N + G)
- Receptacle Detail
- 2 x IEC 60320 C13
- 2 x IEC 60320 C19
- Transfer Time
- 0 ns
- Dataline Protection
- RJ-45
- Overload Protection
- Yes
- Phase
- Single Phase
- Application/Usage
- IT Equipment
- Data Center
- Edge IT Infrastructure
- Efficiency
- 98%
- Power Description
- Load Capacity (VA)
- 10000 VA
- Load Capacity (Watt)
- 10 kW
- Input Voltage
- 230 V AC
- 120 V AC
- Input Voltage Range
- 176 V AC - 264 V AC
- 110 V AC - 285 V AC
- 110 V AC - 280 V AC
- Output Voltage
- 230 V AC
- 220 V AC
- 240 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 600 J
- Output Power Factor
- 1
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- USB/RS-232/Intelligent Card Slot
- SNMPv3
- Alarm
- Overload
- Over Charge
- Fan Fault
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- DC System Voltage
- 240 V DC
- Number of Batteries
- 20
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 9 Minute
- Backup/Run Time (Half Load)
- 18 Minute
- Typical Battery Recharge Time
- 6 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Maximum Operating Elevation
- 9842.52 ft
- Thermal Dissipation
- 526.06 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack/Tower
- Rack Height
- 6U
- Height
- 5.2"
- Width
- 17.3"
- Depth
- 26.2"
- Weight (Approximate)
- 227.08 lb
- Miscellaneous
- Package Contents
- SmartZone U10N12V 10000VA Rack/Tower UPS
- Intelligent Network Management Card
- Certifications & Standards
- CB: IEC62040-1:2013
- CE-LVD: EN62040-1:2008+A1:2013
- UKCA: BS62040-1-2013
- RCM
- IEC 62040-2-2016
- EN 62040-2-2018
- BS62040-2-2018
- ISTA Procedure ISTA Procedure 2B
- IEEE/ANSI C62
- IEEE/ANSI 41 Category A
- IEEE/ANSI Level 3
- CE
- UL
- Software Included
- DCIM Cloud Ready
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
