- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- OM2200
- Product Type
- Infrastructure Management Equipment
Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.

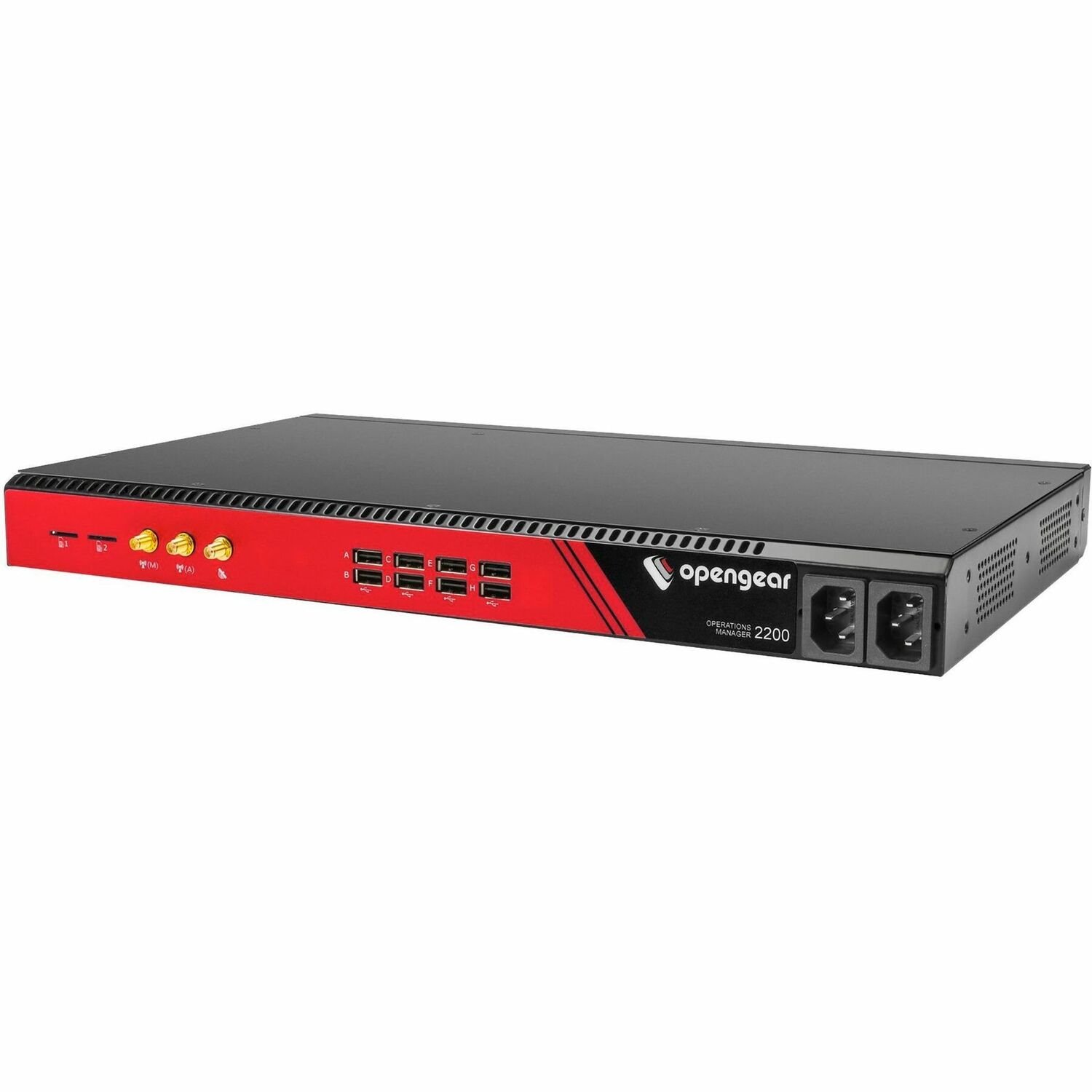

The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
- 6, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
- x86 platform supporting Docker and Python
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- All appliances now ship with two C14 power cables standard
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC to 240 V AC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack Mount
- Height
- 1.8"
- Width
- 17.3"
- Depth
- 10.3"
- Weight (Approximate)
- 7.70 lb
- Miscellaneous
- Additional Information
- 48 selectable serial ports
- x86 4-core CPU
- 8G RAM
- 64G SSD
- 1GbE with SFP
- Docker Support
- TPM 2.0
- 4G LTE-A Pro Global
- Dual AC
- C14 Power Cord
- 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial
- 8 x USB 2.0 ports for device console management
- 2 x USB 3.0 Host Ports for storage
- 2 x 10/100/1000 Ethernet/SFP Fiber port
Environmental:
- Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -30°C to +60°C, -22°F to +140°F
- Humidity: 5% to 90%
Security and Authentication:
Trusted Platform Module 2.0
- AAA - TACACS+
- SSH
- Embedded Firewall
- OpenVPN - Lighthouse Connection
