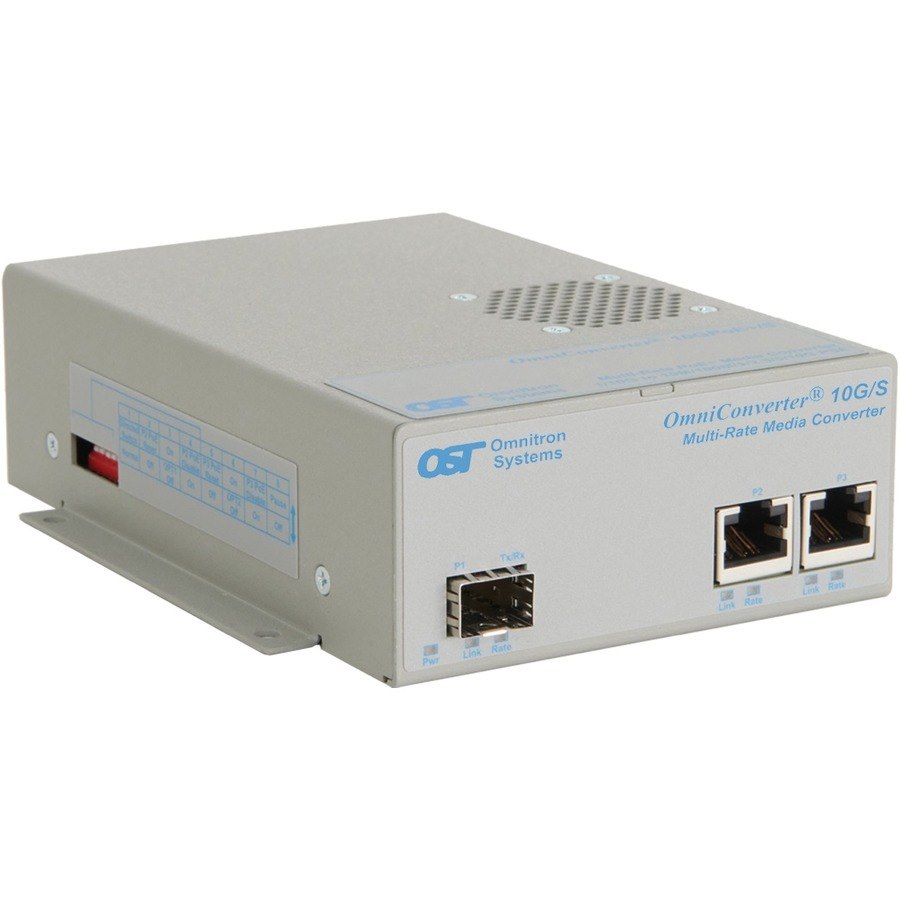

The OmniConverter 10G/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-rate RJ-45 user ports.
The RJ-45 user ports support multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.
The 10G/S are well suited for the bandwidth demands imposed by IP cameras, access points and small cell devices on the market today.
The 10G/S feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5BASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.
The compact OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit (8250-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- OmniConverter
- Product Series
- 10G/S
- Packaged Quantity
- 1
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 1
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 10GBase-X
- 1000Base-X
- Power Description
- Power Source
- AC/DC
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Tabletop
- Rack-mountable
- Shelf Mount
- Height
- 1.8"
- Width
- 4.8"
- Depth
- 6"
- Weight (Approximate)
- 1.10 lb
- Miscellaneous
- Package Contents
- OmniConverter 10G/S 9190-0-11-2W Transceiver/Media Converter
- Universal AC Power Supply
- User Manual
- Additional Information
- Operating Temperature Range:
- Wide: -40 to +60 deg C
- Certifications & Standards
- IEEE 802.3, 802.3bz
- UL 62368-1
- UL 60950-1
- IEC 62368-1
- IEC 60950-1
- EN 62368-1
- EN 60950-1
- CAN/CSA C22.2 No. 62368-1-14
- CAN/CSA C22.2 No. 60950-1
- CE Mark
- EN 55032/24 CE Emissions/Immunity
- CISPR 32, FCC 47 Part 15 Subpart B Class A
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models)
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models)
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models)
- IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models)
- IEC 61000-4-6 CS: Signal: 3 Vrms
- IEC 61000-4-8 ( Magnetic Field) 30 A/m
- IEC 61000-4-11 (Voltage Dips, interrupts)
- IP20 Protection
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin
- United States
