Lexmark Serial Adapter

  • Part: 1729311
  • Model: 27X0900
$131.00
FREE DELIVERY

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Lexmark International, Inc
    • Manufacturer Website Address
    • http://www.lexmark.com
    • Brand Name
    • Lexmark
    • Packaged Quantity
    • 1
    • Product Type
    • Serial Adapter

Connect your Lexmark

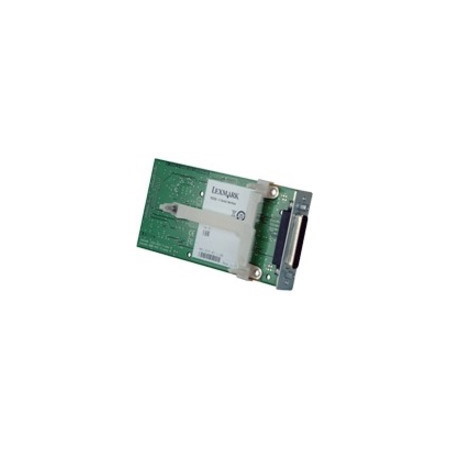

The RS-232C Serial Interface Card installs into the printer's internal port. It supports a standard RS-232C interface using a 25-pin D-shell female connector.

Features

Configuration settings for the serial interface are available using the Serial Opt Menu from the printer's operator panel. Baud rates from 1200 to 115.2K are supported.

Baud rates:1200, 2400, 4800, 9600*, 19.2K, 38.4K, 57.6K and 115.2K; 7 bit or 8* data bits; Parity - Odd, Even, None*, Ignore; Start and Stop Bits; DSR/DTR Data Flow control with DTR pacing, DTR/DSR, XON/XOFF, XON/XOFF/DTR, or XON/XOFF/DTR/DSR flow control protocols. * indicates factory defaults.

RS-422 is not supported.

  • Technical Information
    • Data Transfer Rate
    • 115.2kB/s
    • Platform Supported
    • PC
  • Physical Characteristics
    • Form Factor
    • Plug-in Card
  • Miscellaneous
    • Compatibility
    • Lexmark Printers:

      • MS310
      • MS410
      • MS510
      • MS610
      • M3150
      • MX510
      • MX511
      • MX610
      • MX611
      • XM1145
