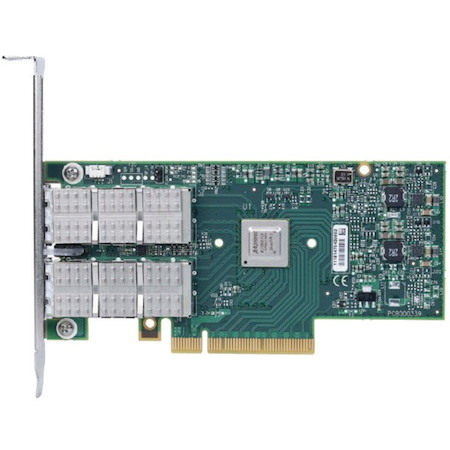

High-performance computing (HPC) solutions require high-bandwidth, low- latency components with CPU offloads to get the highest server efficiency and application productivity. The Mellanox ConnectX-3 FDR VPI IB/E and Dual Port 10 Gigabit Ethernet InfiniBand adapters for IBM system x deliver the I/O performance that meets these requirements.
InfiniBand ConnectX-3 delivers low latency, high bandwidth, and computing efficiency for performance-driven server and storage clustering applications. Efficient computing is achieved by offloading from the CPU routine activities, which makes more processor power available for the application. Network protocol processing and data movement impacts, such as InfiniBand RDMA and Send/Receive semantics, are completed in the adapter without CPU intervention. The ConnectX-3 advanced acceleration technology enables higher cluster efficiency and scalability of up to tens of thousands of nodes.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Type
- 10Gigabit Ethernet Card
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Host Interface
- PCI Express x8
- Total Number of Ports
- 4
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- QSFP
- Number of QSFP Slots
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Network Technology
- 10GBase-X
- InfiniBand
- Yes
- Physical Characteristics
- Card Height
- Low-profile
- Form Factor
- Plug-in Card
- Height
- 6.6"
- Width
- 2.7"
- Depth
- 0.7"
- Weight (Approximate)
- 7.36 oz
- Miscellaneous
- Device Supported
- Server
- Platform Supported
- PC
