- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- C2G
- Product Type
- Network Cable

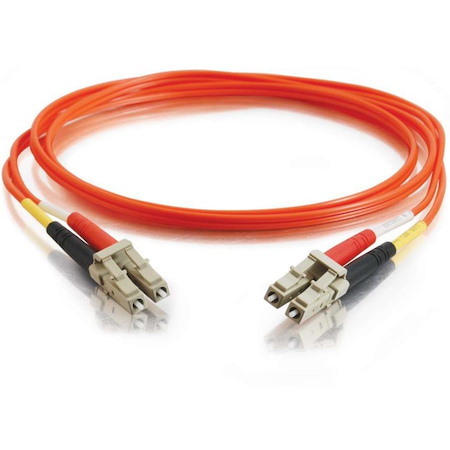

Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fiber. Specifically designed for use with today's narrower aperture components, this cable is fully compatible with multimode applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fiber, immune to electrical interference.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- Fiber Optic
- Fiber Optic Mode
- Multi-mode
- Core/Cladding Diameter
- 50/125 µm
- Cable Length
- 9.84 ft
- Connector Type on First End
- LC Network - Male
- Connector on First End Details
- 2 x LC Network - Male
- Connector Type on Second End
- LC Network - Male
- Connector on Second End Details
- 2 x LC Network - Male
- Jacket Type
- Plenum
- Device Supported
- Network Device
- Features
- Molded
- Pull Resistant Connector
- Impact Resistant
- Flex Resistant
- Strain Resistant
- Crush Resistant
- Physical Characteristics
- Color Family
- Orange
- Product Color
- Orange
- Miscellaneous
- Additional Information
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket OD: 3.0 mm
- Jacket color: Orange
- Min. bandwidth @850 nm: 160 kHz/km
- Min. bandwidth @1310 nm: 500 kHz/km
- Attenuation @850 nm: 3.75 dB/km
- Attenuation @1310 nm: 1.5 dB/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles
- Environmentally Friendly
- Yes
