- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Type
- Fast Ethernet Card
M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex™ 7040/7050 & 7080/7090 (35W) Micro PCs & Wyse 7040/7050 Series
100Base-FX

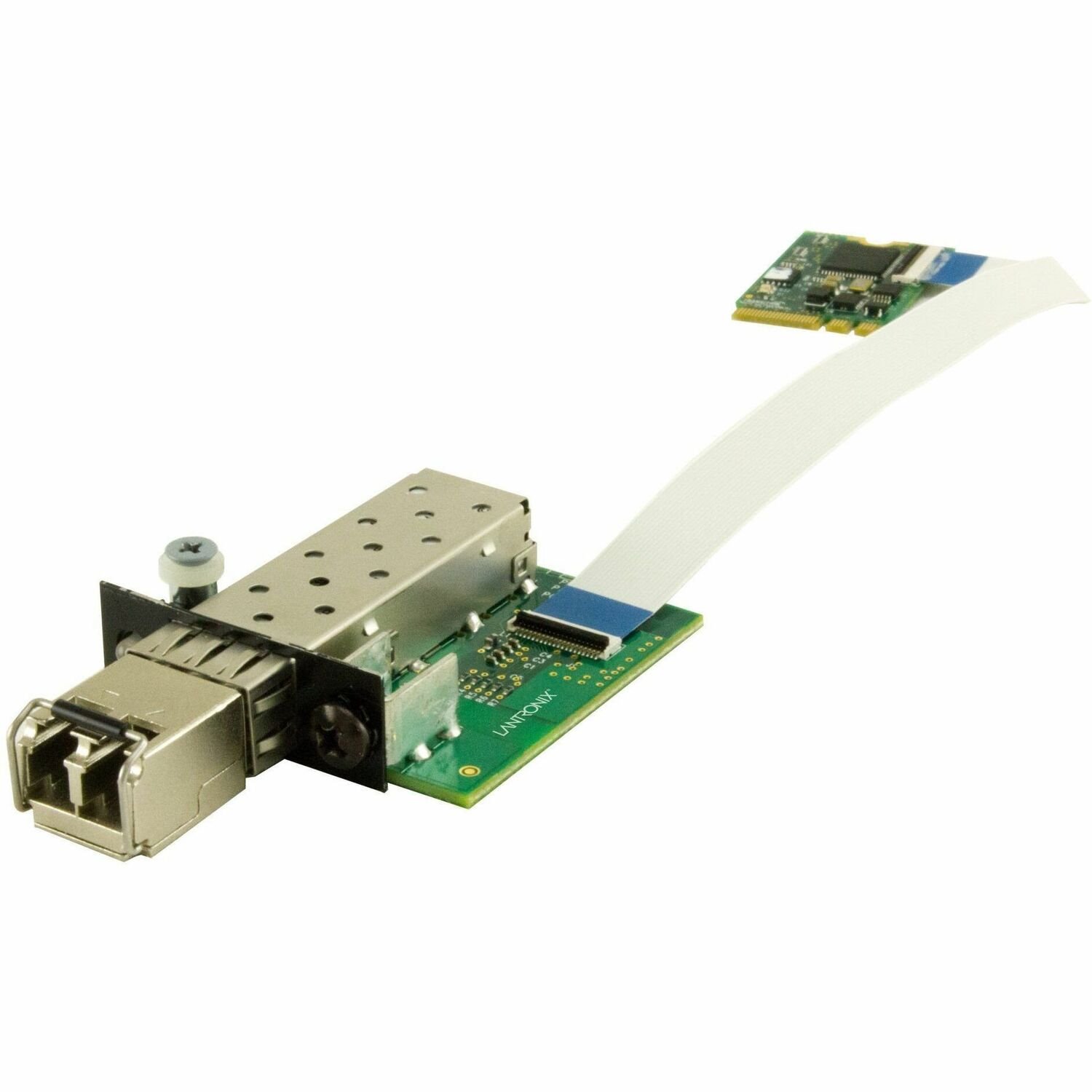

Lantronix M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7040, 7050, and 7080/7090 (35W) Micro PC & Wyse 7040/7050 Series Thin Clients. The NM2-FXS-2230-SFP-01 consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- LED Indicator
- Wake on LAN (WOL)
- TCP Segmentation Offload (TSO)
- Extended Message-Signaled Interrupts (MSI-X)
- UEFI Support
- PXE Support
- Jumbo Frames Support
- IPv6
- Interfaces/Ports
- Host Interface
- PCI Express
- M.2
- I/O Expansions
- Expansion Slot Type
- SFP
- Media & Performance
- Media Type Supported
- Optical Fiber
- Maximum Data Transfer Rate
- 100 Mbit/s
- Network & Communication
- Network Technology
- 100Base-FX
- Environmental Conditions
- Minimum Operating Humidity (Non-condensing)
- 95%
- Maximum Operating Humidity (Non-condensing)
- 5%
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 0.1"
- Width
- 0.9"
- Depth
- 1.2"
- Weight (Approximate)
- 1.60 oz
- Miscellaneous
- Package Contents
- NM2-FXS-2230-SFP-01 Fast Ethernet Card
- 100Base-FX to SGMII SFP Module
- Application/Usage
- Network
- Device Supported
- Desktop Computer
- Operating System Compatibility
- Windows 8
- Windows 8.1
- Windows 10
- Windows 7 x32
- Windows 7 x64
- Linux
- TAA Compliant
- Yes
