- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- EdgeConnect Enterprise
- Product Type
- Router

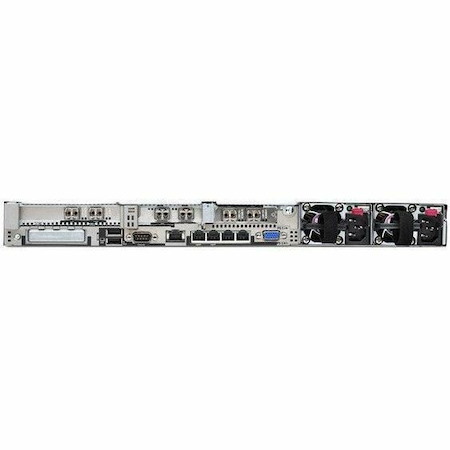

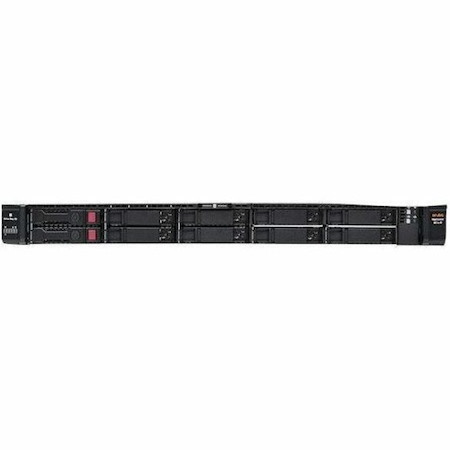

The Aruba EdgeConnect EC-XL-H-10G is a 1 U rack-mountable platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G and internet-based hybrid WAN transport services and a control plane that is automated and secured by the Aruba WAN Orchestrator centralized management software, providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications.
Key features of Aruba EdgeConnect EC-XL-H-10G include high availability through power supply and storage redundancy, high performance PCIe-based flash network memory for application acceleration, and up to six (6) ports supporting 1/10Gbps SFP+, making it an ideal platform for Data Center and large hub environments with typical WAN bandwidth from 2 to 10 Gbps.
- Interfaces/Ports
- Total Number of Ports
- 6
- Management Port
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- Networking Standards
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.1Q
- Power Description
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 413 W
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 27.8"
- Depth
- 17.1"
- Weight (Approximate)
- 33.51 lb
- Miscellaneous
- Package Contents
- EdgeConnect Enterprise EC-XL-H-10G Router
- 4-post tool-less Sliding Rail Kit
- 2 x Power Supplies
- 2 x Power Cords
