- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Series
- CX 6000
- Product Type
- Ethernet Switch

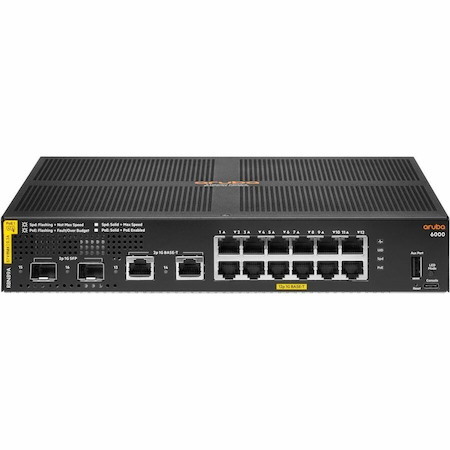

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 12
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 12 x Gigabit Ethernet PoE
- 2 x Gigabit Ethernet Expansion Slot
- 1 x Console Port
- 2 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 100/1000Base-X
- I/O Expansions
- Number of Total Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 139 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Number of Power Supplies Installed
- 1
- Power Consumption
- 170 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Cabinet Mount
- Surface Mount
- Wall Mountable
- Height
- 1.7"
- Width
- 10"
- Depth
- 10"
- Weight (Approximate)
- 6.13 lb
- Miscellaneous
- Package Contents
- 6000 12G Class4 PoE 2G/2SFP 139W Switch
- Mounting Brackets
- Application/Usage
- Data Center
- Campus
- Branch Office
- Business
- Enterprise
- Network
- IP Phone
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
