- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Line
- Line Array
- Product Series
- CBT
- Product Type
- Speaker

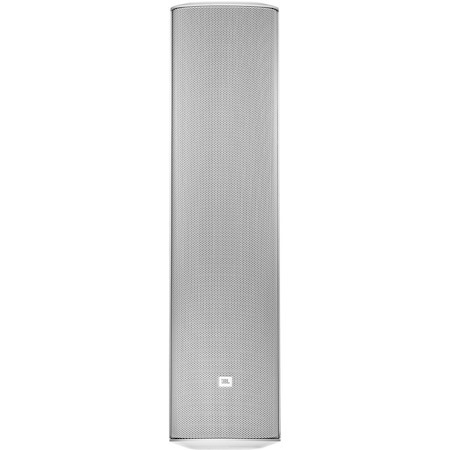

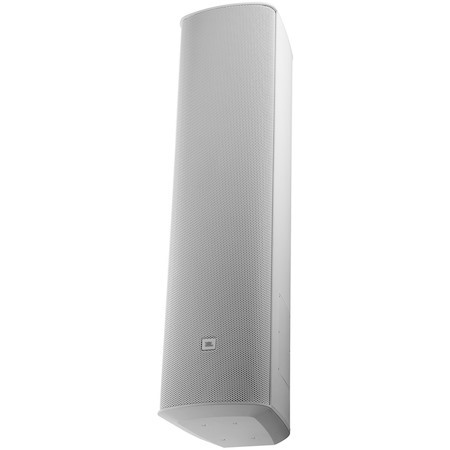

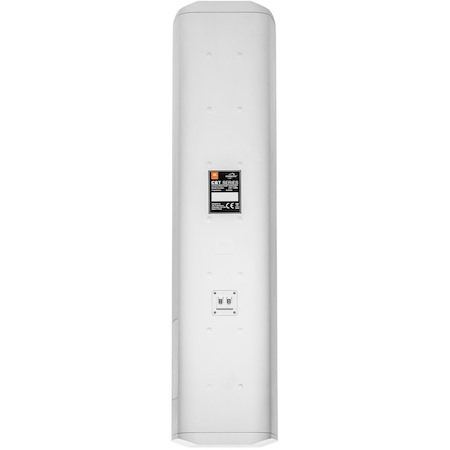

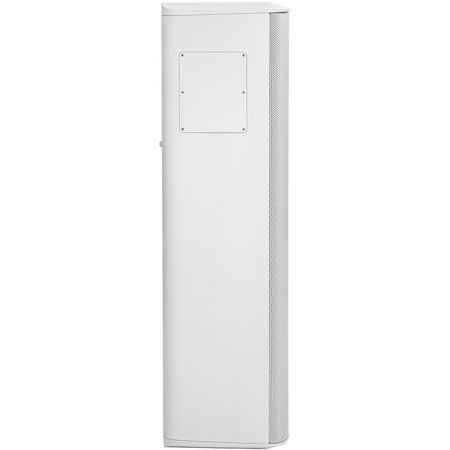

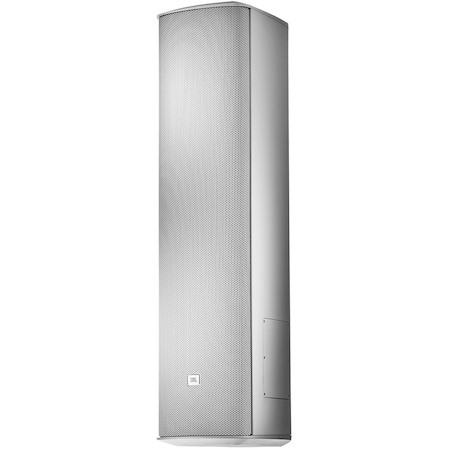

The CBT 1000E cabinet contains six low frequency drivers and a crossover network purposely designed for use in the CBT 1000 + 1000E system, in a tough fiberglassreinforced ABS enclosure. The 1500W power handling and high sensitivity delivers powerful low frequency output.
The drivers have neodymium magnet motors with 50 mm (2 in) diameter voice coils. The magnet system provides maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 16 mm (0.62 mm) long coil provides higher linear drive and high power handling in a compact driver. The drivers feature damped blended surrounds and coated sealed paper cones found in high performance large format drivers. Drivers feature coated diaphragm materials to provide moisture, UV and salt resistance for outdoor capability. The thick heavy-duty aluminum grille allows for rust-free installation outdoors.
- Technical Information
- RMS Output Power
- 1500 W
- PMPO Output Power
- 6000 W
- Minimum Frequency Response
- 38 Hz
- Maximum Frequency Response
- 650 Hz
- Impedance
- 8 Ohm
- Sensitivity
- 130 dB
- Physical Characteristics
- Product Color
- White
- Form Factor
- Wall Mountable
- Speaker Installation
- Outdoor
- Height
- 80.3"
- Width
- 9.8"
- Depth
- 13.58"
- Weight (Approximate)
- 44.09 lb
- Miscellaneous
- Package Contents
- CBT 1000E Current Extension for CBT 1000 Line Array Column Speaker
- 2 x Piece Wwivel (Pan)/Tilt Wall Bracket
- Coupler Plate
- Application/Usage
- Outdoor
- Auditorium
- House of Worship
- Lecture Hall
- Education
- Multipurpose
- Sports Bar
- Racetrack
- Transit Center
- Amusement Park
- Cinema
- Country of Origin
- China
