- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL
- Product Type
- Speaker

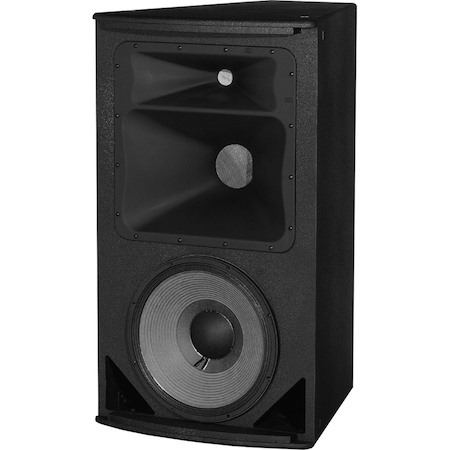

AM7315/95 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled 90° by 50° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315/95 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 3-way
- RMS Output Power
- 1000 W
- PMPO Output Power
- 4000 W
- Midrange Driver Size
- 8"
- Minimum Frequency Response
- 45 Hz
- Maximum Frequency Response
- 18 kHz
- Impedance
- 8 Ohm
- Minimum Crossover Frequency
- 300 Hz
- Maximum Crossover Frequency
- 2.20 kHz
- Sound Pressure Level
- 139 dB
- Sensitivity
- 113 dB
- Physical Characteristics
- Product Color
- Black
- Product Material
- Steel
- Foam
- Birch Plywood
- Height
- 38.1"
- Width
- 22.1"
- Depth
- 25.90"
- Weight (Approximate)
- 101 lb
- Miscellaneous
- Certifications & Standards
- NL8
- CE
- Mil-Std 810
- IP-x3
- per IEC529
