- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Eaton
- Product Line
- ePDU
- Product Series
- Metered
- Product Type
- PDU

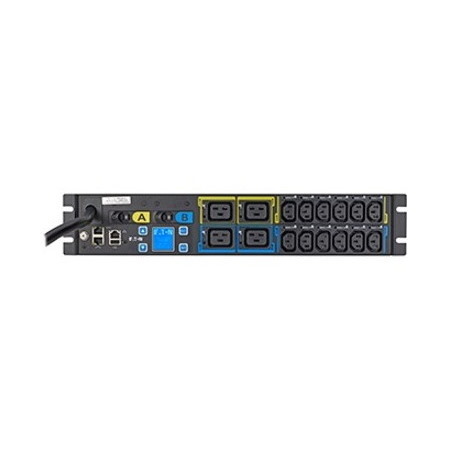

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Plug/Connector Detail
- 1 x NEMA L6-30P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 12 x IEC 60320 C13
- 4 x IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Power Rating (Watt)
- 5760 W
- Input Current
- 24 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 2U
- Height
- 19"
- Width
- 3.4"
- Depth
- 8.4"
- Miscellaneous
- Country of Origin
- Philippines
