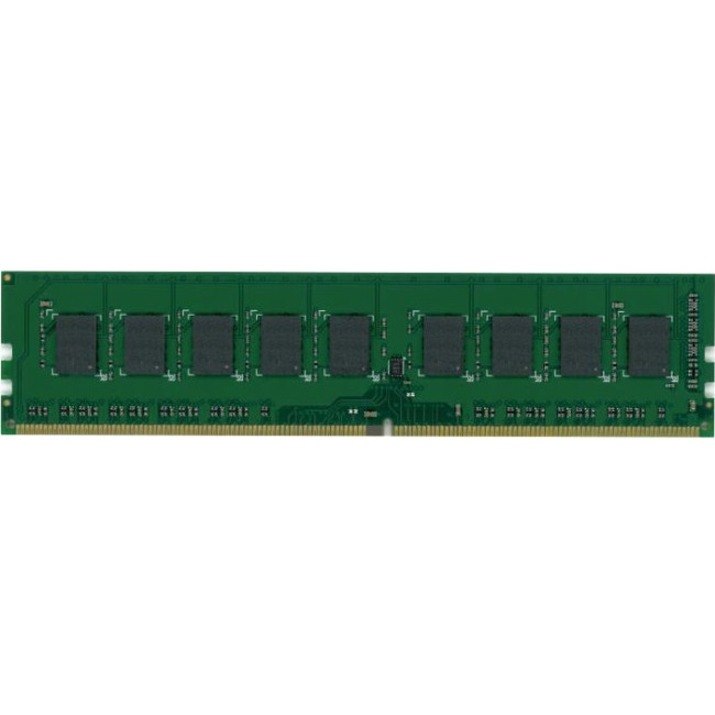

DTM68119D is an Unbuffered 512Mx72 memory module, which conforms to JEDEC's DDR4-2400, PC4-2400 standard. The assembly is a Single-Rank containing - 9 Samsung 512Mx8 DDR4-2400 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module
- Technical Information
- Memory Size
- 4 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Memory Speed
- 2400 MHz
- Memory Standard
- DDR4-2400/PC4-19200
- Memory Rank
- Single-rank
- Error Checking
- ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL17
- Device Supported
- Motherboard
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Thickness
- 107.9 mil
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Compatibility
- Intel S1200SP (Silver Pass) Motherboard
SuperMicro Motherboards:- X11SAE
- X11SAE-F
- X11SAE-M
- X11SAT
- X11SAT-F
- X11SSA-F
- X11SSD-F
- X11SSE-F
- X11SSH-CTF
- X11SSH-F
- X11SSH-GF-1585
- X11SSH-GF-1585L
- X11SSH-GTF-1585
- X11SSH-GTF-1585L
- X11SSH-LN4F
- X11SSH-TF
- X11SSi-LN4F
- X11SSL
- X11SSL-CF
- X11SSL-F
- X11SSL-nF
- X11SSM
- X11SSM-F
- X11SSW-4TF
- X11SSW-F
- X11SSW-TF
- X11SSZ-F
- X11SSZ-TLN4F
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
