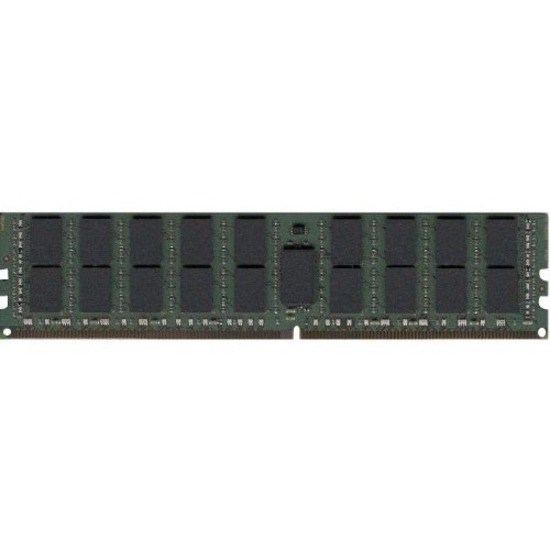

The DRC2666R upgrades are registered memory modules, which conform to JEDEC's DDR4, PC4-2666V standard. The DRC2666LR is a load-reduced memory module (LRDIMM). One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module
- Technical Information
- Memory Size
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 32GB
- Memory Speed
- 2666 MHz
- Memory Standard
- DDR4-2666/PC4-2666
- Error Checking
- ECC
- Signal Processing
- Registered
- Device Supported
- Server
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Thickness
- 156.7 mil
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Compatibility
Cisco UCS B200 M5 Blade Servers
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
