- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Smart App Online UPS
- Product Condition
- New
- Product Type
- Double Conversion Online UPS

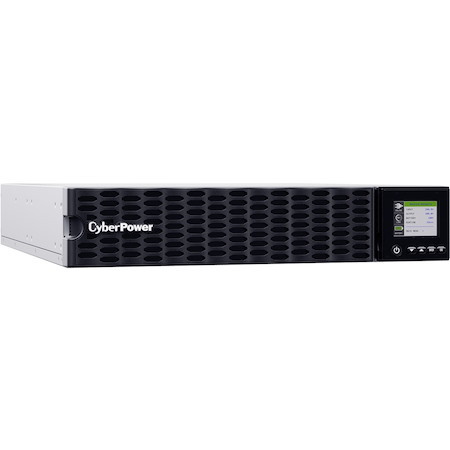

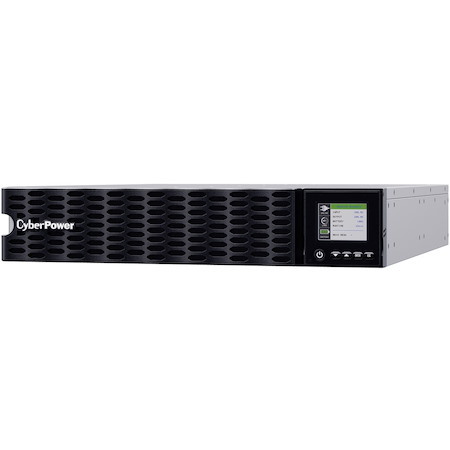

The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

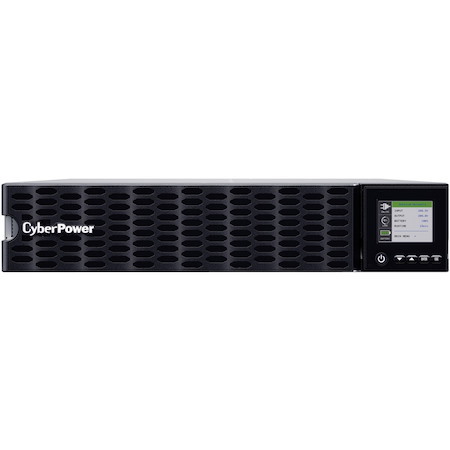

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
- Warranty
- Limited Warranty
- 3 Year
- Directly Connected Equipment Guarantee
- $300000 Lifetime
- Technical Information
- Plug/Connector Type
- Hardwired

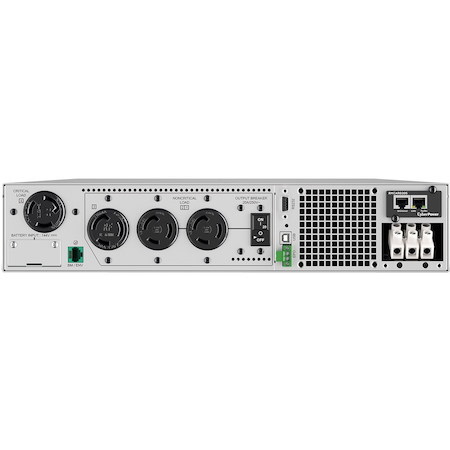

- Receptacle Type
- NEMA L6-20R
- NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Transfer Time
- 0 ns
- Protection Type
- Short Circuit
- Backfeeding
- Overload Protection
- Yes
- EMI/RFI Noise Filter
- Yes
- Energy Saving
- ECO Mode Efficiency: 96%
- Power Description
- Load Capacity (VA)
- 6000 VA
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 2430 J
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Alarm
- UPS Fault
- Low Battery
- Battery Mode
- Overload
- Controls/Indicators
- Status Indicators
- LED Indicators: Power On (White)
Multi-Function Color TFT-LCD Readout that Supports:
- 15 x Types of UPS status
- 7 x Types of Controls
- 20 x Types of Set Up
- 12 x Event Logs
- 11 x Types of About
- 4 x Types of Diagnostics
- Interfaces/Ports
- Serial Port
- Yes
- USB (HID Compliant) Port
- Yes
- EPO Port
- Yes
- Battery Information
- DC System Voltage
- 12 V DC
- Number of Batteries
- 12
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 6000 mAh
- Backup/Run Time (Full Load)
- 1.40 Minute
- Backup/Run Time (Half Load)
- 4.90 Minute
- Typical Battery Recharge Time
- 4 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -4°F (-20°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 66 dB(A)
- Thermal Dissipation
- 472.72 W
- Physical Characteristics
- Form Factor
- Rack/Tower
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 17"
- Depth
- 28.3"
- Weight (Approximate)
- 92.40 lb
- Miscellaneous
- Package Contents
- Smart App Online OL6KRTHD 6KVA Tower/Rack Convertible UPS
- Mounting Hardware
- Additional Information
- Energy Saving: Yes - ECO Mode Efficiency >96%
- Battery Equalization Technology: Yes
- Smart Battery Management (SBM) Mode: Yes
- Cold Start: Yes
- Backfeed Protection: Yes
- Input Power Factor: 0.99
- Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
- Short Circuit Protection: UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
- Rated Power Factor: 1
- Crest Factor: 3:1
- Bypass: Internal Bypass (Automatic and Manual)
- ECO Mode Bypass Voltage Range: ±10%, ±15% (Configurable)
- Auto Rotatable LCD Control Panel Option: Yes
- Removable LCD Control Panel Option: No
- Dry Contacts: No
- Management Software: PowerPanel @ Business Edition
- Enclosure Construction: Steel
- Input Voltage Range: 120-139VAC for 0-25% Load
- Plug Type: Hardwire with NEMA L6-30P Power Cord Option
- Crest Factor: 3:1
- Operating Relative Humidity: 0% - 90% non condensing
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Overload Protection:
Line Mode:- 105~125% Load for 1 min
- 126~150% Load for 10 sec
Battery Mode:
- 105~130% Load for 10 sec
- 131~150% Load for 2 sec
- Certifications & Standards
- UL 1778 5th Ed
- CSA C22.2 NO.107.3-05
- FCC Part 15 Class A
- Energy Star
- Yes
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
