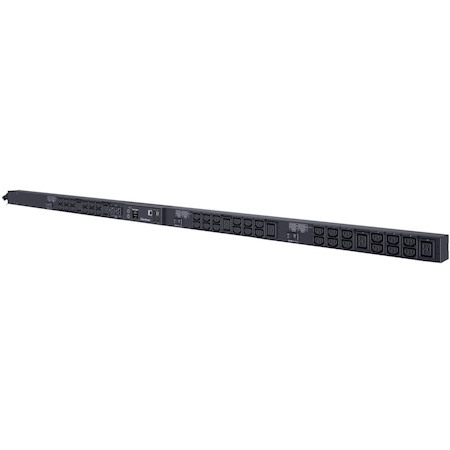

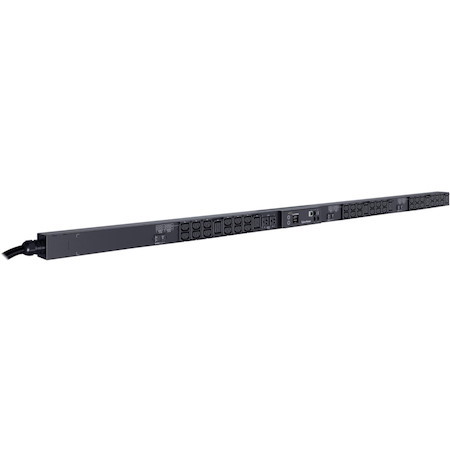

Stay informed about your power with the CyberPower PDU33105 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD.
The PDU33105 supports a 208V 30A input and includes 44 outlets. Other features include an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU33105 is protected by a three-year limited warranty.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Monitored PDU
- Product Condition
- New
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Monitored
- Design
- Modular
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L21-30P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 44 x NEMA 5-15R
- Protection Type
- Overload Protection
- Locking Receptacles
- Cord Retention Tray
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage Range
- 120 V AC - 208 V AC
- Input Current
- 30 A
- Management
- Management
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Product Color
- Black
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Cord Length
- 10 ft
- Height
- 70.5"
- Width
- 2.2"
- Depth
- 2.2"
- Weight (Approximate)
- 15.70 lb
- Miscellaneous
- Additional Information
- Derated Input Current : 24 A
- Input Frequency Range : 50 Hz - 60 Hz
- Outlets - # of Banks : 3
- Overload Protection : 20A X 3
- Environmental Sensor : Optional, via RJ45
- LCD : Multifunction LCD
- LED Indicators : Tx/Rx
- Modular Expandability (Cascading) : Yes, via RJ45
- Monitoring Level : Input
- Software (Free Download) : PowerPanel® Business
- Upgradeable firmware : Yes
- Adjustable Mounting Brackets : 1 set
- Material of Construction : Metal
- Operating Elevation : 0 - 11480 ft (0 - 3499 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 23 - 140 °F (-5 - 60 °C)
- Certifications & Standards
- UL60950-1
- UL62368-1
- FCC Class A
- Country of Origin
- China
- Environmentally Friendly
- Yes
