Comprehensive's Category 6 550MHz plenum shielded local area network cable utilizes 4 twisted pairs, an overall shield, plenum jacket, and solid 23 awg construction.
Comprehensive's Category 6 Shielded 550MHz Plenum cable supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, and Ethernet 1000BASE-T. Comprehensive uses 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC. Perfect for distributing data, voice and video on today's high speed ethernet and gigabit networks.

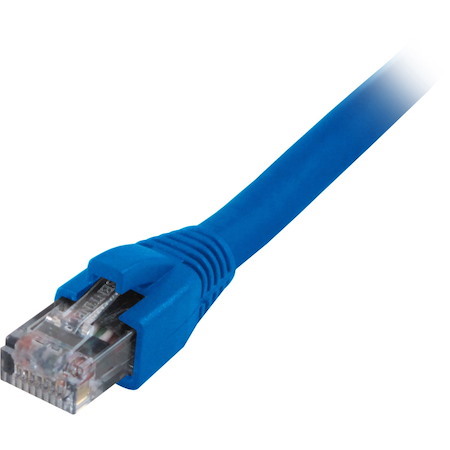

These CAT6 550 Mhz Snagless Patch Cables have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief. RoHS Compliant. Lifetime Warranty.
- General Information
- Manufacturer
- Comprehensive Connectivity Company
- Manufacturer Website Address
- http://www.comprehensiveco.com
- Brand Name
- Comprehensive
- Product Type
- Network Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- Category 6
- Cable Characteristic
- Patch Cable
- Cable Length
- 50 ft
- Connector Type on First End
- RJ-45 Network - Male
- Connector on First End Details
- 1 x RJ-45 Network - Male
- Connector Type on Second End
- RJ-45 Network - Male
- Connector on Second End Details
- 1 x RJ-45 Network - Male
- Conductor
- Copper
- Shielding
- Yes
- Jacket Type
- CMP
- Plenum
- Device Supported
- Network Device
- American Wire Gauge
- 23 AWG
- Data Transfer Rate
- 1 Gbit/s
- Boot Type
- Snagless
- Number of Pairs
- 4
- Features
- Molded
- Booted
- Strain Relief
- Flame Retardant
- Physical Characteristics
- Color Family
- Blue
- Product Color
- Blue
- Jacket Color
- Blue
- Weight (Approximate)
- 49 lb
- Miscellaneous
- Certifications & Standards
- C(ETL)US
- Environmentally Friendly
- Yes
- Country of Origin
- China
