- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Nexus
- Product Series
- 3000
- Product Type
- Layer 3 Switch

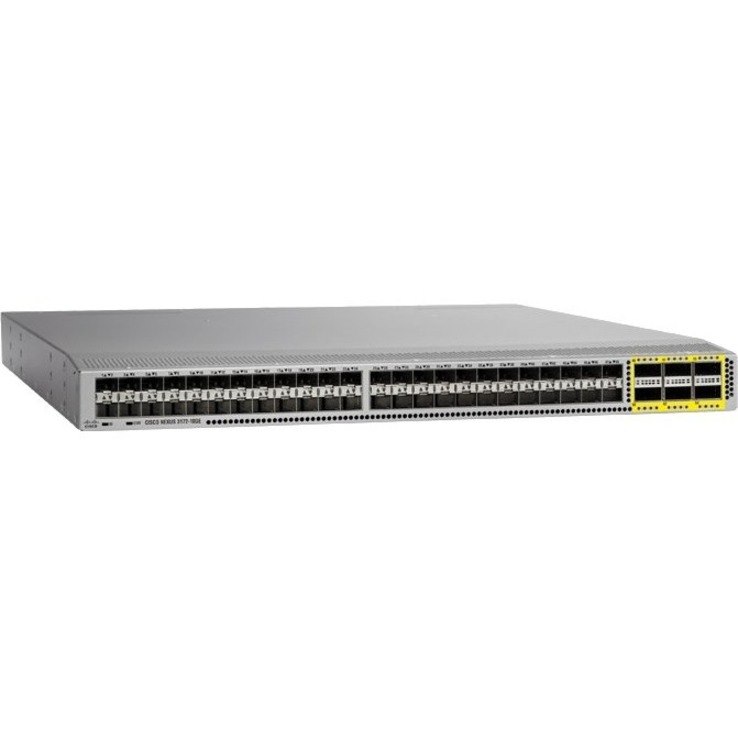

The Cisco Nexus® 3172PQ Switch is a dense, high-performance Layer 2 and 3 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offers improved port density, scalability, and features compared to the first-generation switches. The Cisco Nexus 3172PQ comes in a compact one-rack-unit (1RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 3172PQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switch.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Management Port
- Yes
- USB
- Yes
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Expansion Slot
- 12 x 40 Gigabit Ethernet Expansion Slot
- Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 40GBase-X
- I/O Expansions
- Number of Total Expansion Slots
- 60
- Expansion Slot Type
- SFP+
- QSFP+
- Shared SFP Slot
- No
- Number of SFP+ Slots
- 48
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- SNMP v1, v2, v3
- Telnet
- RMON
- CLI
- sFlow
- DHCP
- Syslog
- Web Based Managment
- Memory
- Flash Memory
- 2 GB
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- AC Adapter
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 19.7"
- Weight (Approximate)
- 20 lb
- Miscellaneous
- Package Contents
- Nexus 3172PQ Layer 3 Switch
- AC Power Supply
- Certifications & Standards
- IEEE Standards:
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1w
- 802.3z
- 802.3ad
- 802.3ae
- 802.3ba
- 802.3an
- 802.1ab
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943
- 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
- EN55024
- CISPR24
- EN300386
- KN24
- Environmentally Friendly
- Yes
