- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Type
- Antenna
- Packaged Quantity
- 1

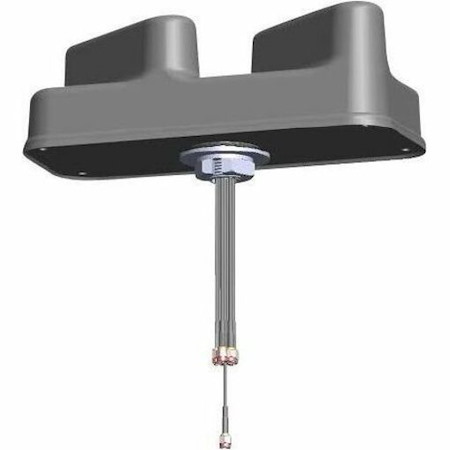

This section describes the technical specifications and installation instructions for the Cisco Multi-element, 7-in-1, LTE/Wi-Fi/GNSS antenna (ANT-7-5G4WL2G1-O), hereafter referred to as the antenna. The antenna features:
- Antenna Type - Multi Band Monopole, built in ground plane
- Direct Mount, 6x 2ft RG 316 / 1x 17ft RG 174
- 4x Cellular (4G/5G)
- 1x GNSS
- 2x WiFi
The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz
- 1710 MHz to 5925 MHz
- Antenna Gain (Isotropic)
- 5.8 dBi
- Voltage Standing Wave Ratio (VSWR)
- 2.5:1
- Interfaces/Ports
- Connector Type
- SMA
- RP-SMA
- Power Description
- Power Source
- DC Power
- Physical Characteristics
- Height
- 3.63"
- Width
- 4.86"
- Form Factor
- Vehicle Mount
- Direct Mount
- Weight (Approximate)
- 1.85 lb
- Miscellaneous
- Application/Usage
- Cellular Network
- GPS
- Wireless Data Network
