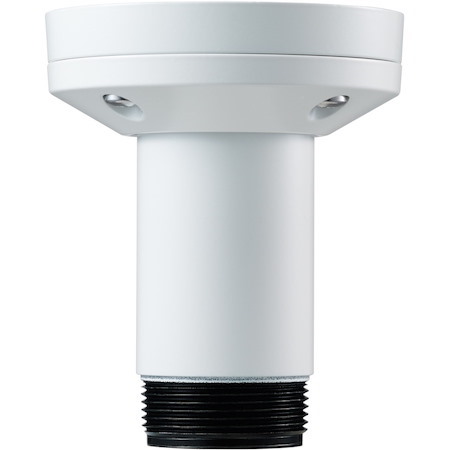

Pendant pipe mount, 4" (11 cm)

  • Part: 1459848
  • Model: NDA-U-PMTS
$39.00
FREE DELIVERY

Availability

Out of Stock

The modular camera mounts & accessories are a family of mounts, mounting adapters, pendant interface plates and surveillance cabinets which can be used with a wide range of Bosch cameras. The accessories are easy to install and can be combined to simplify installation in multiple locations whilst retaining the same look and feel.

Functions

Short pendant pipe mount The short pendant pipe mount allows the installation of a camera suspended from a ceiling. The mount supports easy cable management or can be combined with an additional surface mount box for conduit connections.Universal accessory combinations It provides a safe and robust solution to mount cameras directly to a ceiling, or it can be used in combination with:

  • NDA-U-PSMB Pendant wall/ceiling mount SMB
  • NDA-U-PA0/1/2 Surveillance cabinet
  • NDA-U-WMP Wall mount plate
  • General Information
    • Manufacturer
    • The Bosch Group
    • Manufacturer Website Address
    • http://www.bosch.com
    • Brand Name
    • Bosch
    • Packaged Quantity
    • 1
    • Product Type
    • Mounting Pipe

  • Product Information
    • Device Supported
    • Surveillance Camera
    • Features
    • Weather Resistant
    • Vandal Resistant
    • Salt Resistant
    • Vibration Resistant
    • Shock Resistant
    • Impact Resistant
    • IK10
  • Physical Characteristics
    • Product Color
    • Signal White
    • Product Material
    • Aluminum
    • Length
    • 4"
    • Diameter
    • 4"
    • Weight (Approximate)
    • 0.77 lb
  • Miscellaneous
    • Package Contents
      • 1 x Pendant Pipe Mount, 4" (11 cm)
      • 1 x Universal Flange Cover
      • 1 x Universal Direct Connect Plate
      • 4 x M5 x 16 mm Pan Head Torx Screw with Zinc Coating
      • 1 x T25 Torx Key
      • 1 x Thread Seal Tape: PTFE Tape
      • 1 x Quick Installation Guide
    • Application/Usage
    • Pipe
    • Indoor/Outdoor
    • Country of Origin
    • Taiwan
