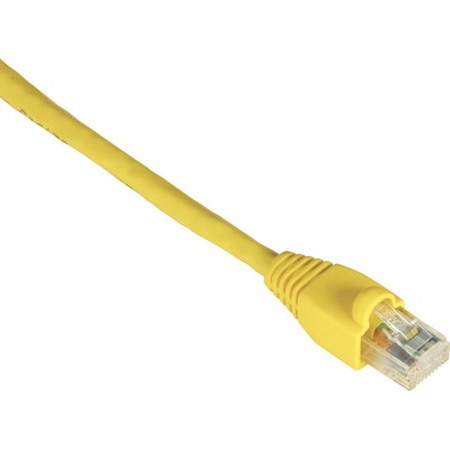

Black Box GigaTrue Cat. 6 Channel UTP Patch Cable

  • Part: 1257978
  • Model: EVNSL644-0025
$10.00
FREE DELIVERY

Availability

In Stock

Black Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.

  • General Information
    • Manufacturer
    • Black Box Corporation
    • Manufacturer Website Address
    • http://www.blackbox.com
    • Brand Name
    • Black Box
    • Product Line
    • GigaTrue
    • Product Type
    • Network Cable
  • Warranty
    • Limited Warranty
    • Lifetime

  • Technical Information
    • Cable Type
    • Category 6
    • Cable Characteristic
    • Patch Cable
    • Cable Length
    • 25 ft
    • Connector Type on First End
    • RJ-45 Network - Male
    • Connector on First End Details
    • 1 x RJ-45 Network - Male
    • Connector Type on Second End
    • RJ-45 Network - Male
    • Connector on Second End Details
    • 1 x RJ-45 Network - Male
    • Contact Plating
    • Gold
    • Conductor
    • Copper
    • Shielding
    • No
    • Jacket Type
    • CM
    • Device Supported
    • Patch Panel
    • Wallplate
    • Network Device
    • American Wire Gauge
    • 24 AWG
    • Data Transfer Rate
    • 1 Gbit/s
    • Boot Type
    • Snagless
    • Features
    • Stranded
    • Booted
    • Strain Relief
    • Damage Resistant
    • Near End Cross Talk (NEXT)
    • PoE
  • Physical Characteristics
    • Product Color
    • Yellow
    • Jacket Material
    • Polyvinyl Chloride (PVC)
  • Miscellaneous
    • Additional Information
      • Perfect for full broadband and baseband video
      • Full Power Sum performance
      • Provides full-duplex operation
      • Meets balance requirements (LCL/LCTL)
      • Improved attenuation provides cleaner data and video transmissions
      • Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
      • Delay Skew (Maximum): 25 ns/100 m (328 ft.)
      • Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
      • Mutual Capacitance (Maximum): 56 pF/m
      • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
      • PS-ACR: 32 dB (Typical) at 100 MHz
      • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
      • Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
      • Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
      • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

      Applications:

      • 1000BASE-T
      • 100BASE-TX
      • 100BASE-VG
      • 155-Mbps ATM
      • 100-Mbps FDDI/CDDI
    • Certifications & Standards
    • EIA/TIA-568-B.2-1

    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
